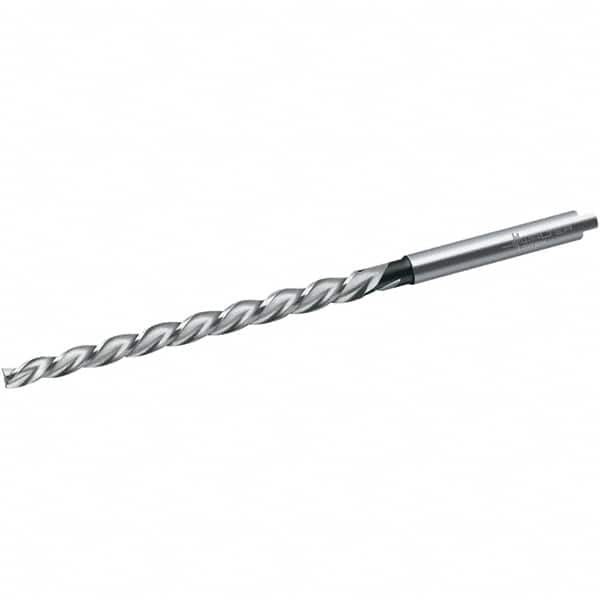

Walter-Titex - 0.0984" Diam, 0.0748" Small End, 3.15mm Diam Straight Shank, 48mm Flute, Taper Pin Reamer
Item #: 36366144
Brand: Walter-Titex
Model #: 5073212
Features and Benefits
Helical flute reamers are used for reaming taper pin holes in blind and through-hole operations. These flutes are designed with a high spiral construction for reduced chip packing.
| Product Specifications | |
|---|---|
| Small End Diameter (mm) | 1.90 |
| Small End Diameter (Decimal Inch) | 0.0748 |
| Reamer Diameter (mm) | 2.50 |
| Reamer Diameter (Decimal Inch) | 0.0984 |
| Flute Type | Helical |
| Shank Type | Straight |
| Overall Length (mm) | 86 |
| Flute Length (mm) | 48 |
| Number of Flutes | 3 |
| Shank Diameter (mm) | 3.15 |
| Spiral Direction | Left Hand |
| Cutting Direction | Right Hand |
| Reamer Material | Cobalt |
| Reamer Finish/Coating | Bright |
| Material Application | Aluminum; Cast Iron; Fiber Reinforced Plastics; Graphite; Non-Ferrous Metals; Plastics; Steel |
