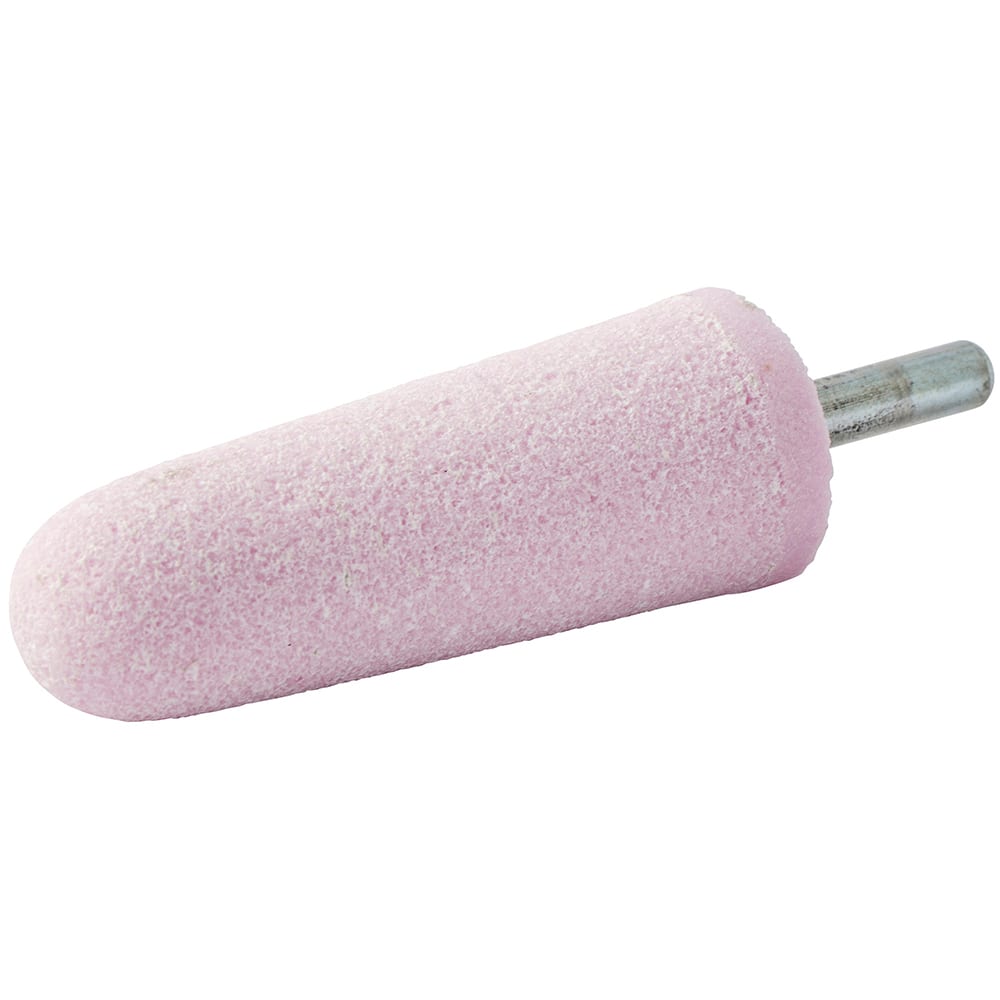

Merit Abrasives - Mounted Points Point Shape Code: A3 Point Shape: Cone
Item #: 94254711
Brand: Merit Abrasives
Model #: 69078645333
Features and Benefits
Cone rubberized points are used for cleaning, polishing and smoothing grooves, angles, ball corners, and other hard-tor-each areas. They are ideal for use on molds, dies, castings, ports, tanks and more.
Aluminum Oxide is the most commonly used abrasive. Best-suited for general purpose deburring and blending, it is tough, economical, and fracture-resistant. Commonly used on ferrous alloys, high-tensile materials, and wood.
Product Specifications
Mounted Points; Point Shape Code: A3 ; Point Shape: Cone ; Abrasive Material: Aluminum Oxide ; Shank Diameter (Inch): 1/4 ; Head Diameter (Inch): 1 ; Head Thickness (Inch): 2-3/4
| Point Shape Code | A3 |
| Point Shape | Cone |
| Abrasive Material | Aluminum Oxide |
| Shank Diameter (Inch) | 1/4 |
| Head Diameter (Inch) | 1 |
| Head Thickness (Inch) | 2-3/4 |
| Grade | Coarse |
| Bond Type | Resinoid |
| Density/Hardness | Medium |
| Shank Length (Decimal Inch) | 1.5 |
| Shank Length (Inch) | 1-1/2 |
| Overall Length (Inch) | 2 |
| Maximum RPM | 16100 |
| Color | Pink |
| Shank Diameter (Decimal Inch) | 1/4 |
| Head Thickness (Decimal Inch) | 2-3/4 |
| Grit | 80 |
