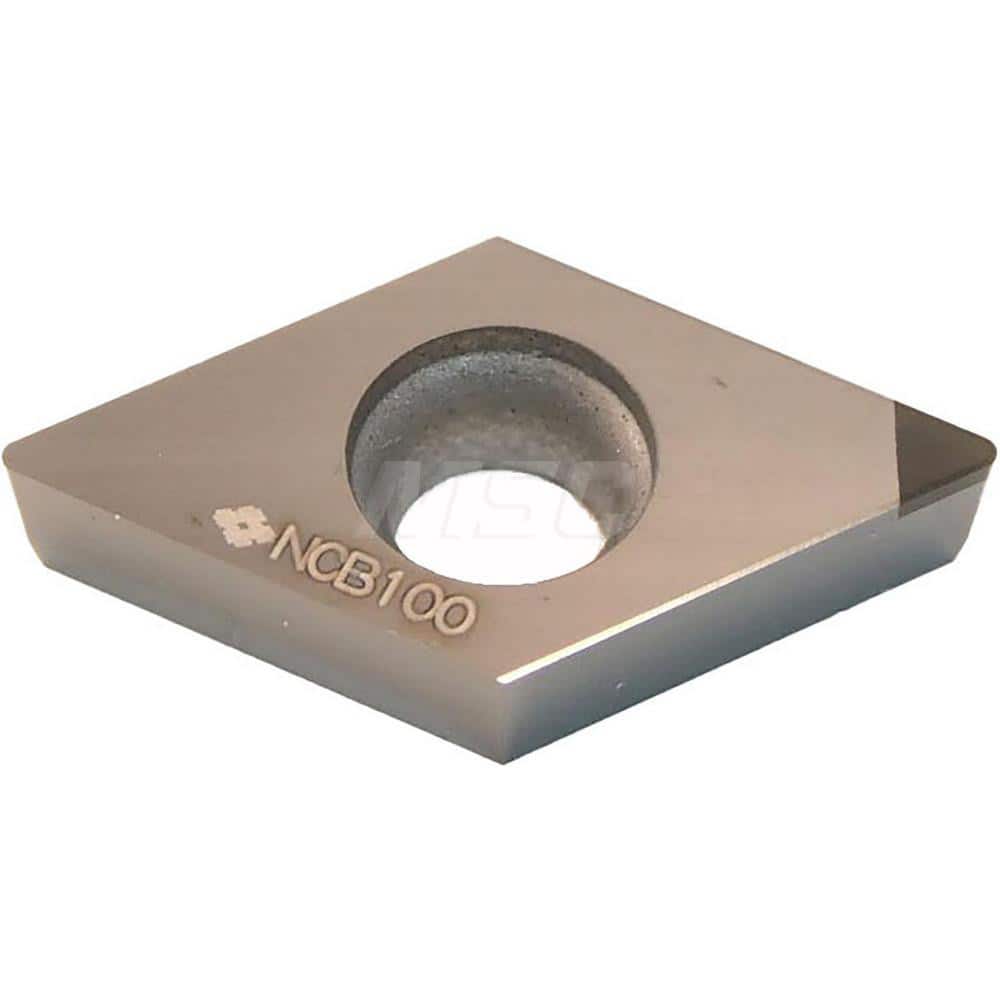

Turning Insert: NUDCGA32.52 NCB100, Cubic Boron Nitride Uncoated Finish, Neutral, 0.0827″ Long, 0.0315″ Corner Radius, 55.0 ° N/A Diamond, Series NCB100
Item #: 10109387
Brand: Sumitomo
Model #: 16P5FDP
Product Specifications
| Insert Style | DCG |
| Insert Shape Code | D |
| Insert Size Code | 32.52 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Cubic Boron Nitride |
| Manufacturer Grade | NCB100 |
| Hole Diameter (Decimal Inch) | 4.4000 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Pin; Clamp |
| Insert Hand | Neutral |
| Insert Thickness | 3.97 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 55.0 |
| Relief Angle | 7 |
| Series | NCB100 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.0827 |
| Insert Length (mm) | 2.10 |
| Iso Code | NU-DCGW11T308 |
| Manufacturers Catalog Number | NUDCGA32.52-NCB100 |
| Chip Breaker | A |
| Coating/Finish | Uncoated |
