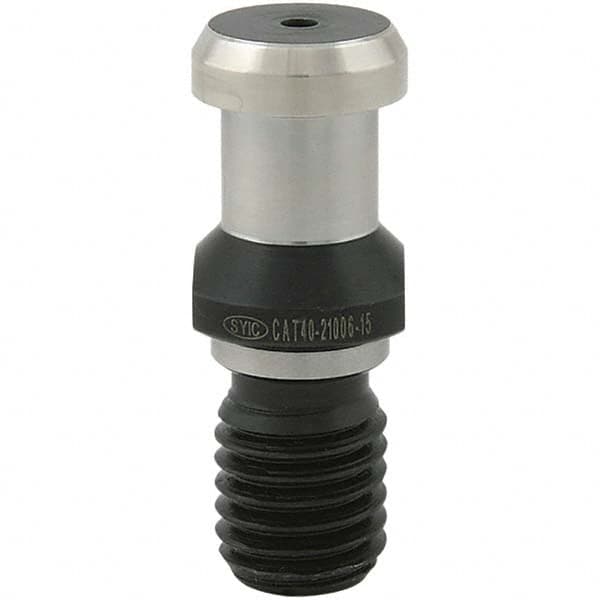

Techniks - Retention Knobs Type: Standard Taper Size: CAT40
Item #: 10122430
Brand: Techniks
Model #: 21006-15C
Exact Tooling IR#: 04
Features and Benefits
Retention knobs, also known as pull studs, are threaded components that enable the mounting of a toolholder to the spindle of a CNC milling machine. Retention knobs are held in the machine by a clamp or spring.
Product Specifications
Retention Knobs; Type: Standard ; Taper Size: CAT40 ; Thread Size: 5/8-11 ; Angle Radius: 15.00 ; Knob Diameter (Decimal Inch): 0.7500 ; Through Coolant: Yes
| Type | Standard |
| Taper Size | CAT40 |
| Thread Size | 5/8-11 |
| Angle Radius | 15.00 |
| Knob Diameter (Decimal Inch) | 0.7500 |
| Through Coolant | Yes |
| Overall Length (Decimal Inch) | 1.8800 |
