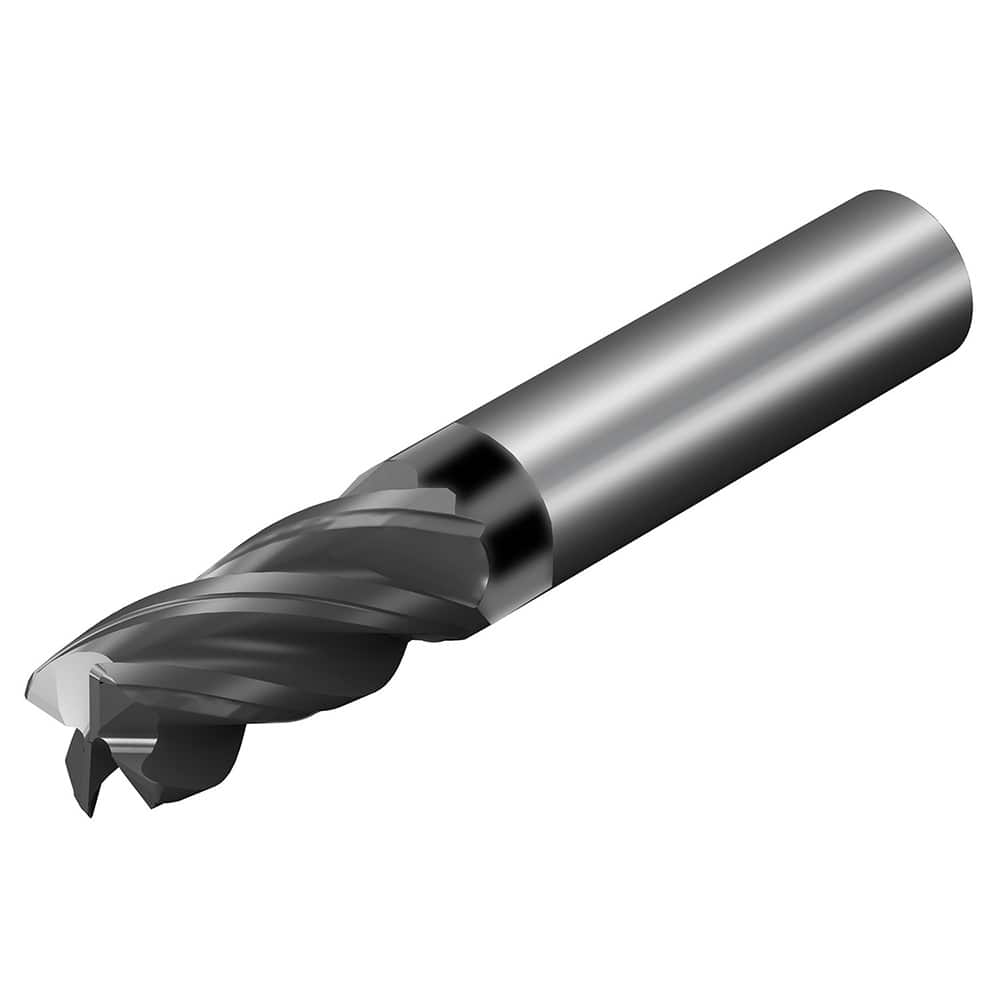

Corner Radius End Mill: 5/8″ Dia, 2-1/4″ LOC, 0.06″ Radius, 4 Flutes, Solid Carbide 5″ OAL, 5/8″ Shank Dia, 36.5 ° Helix, AlTiN Coated, Corner Radius End, Centercutting, Series CoroMill Dura
Item #: 10143253
Brand: Sandvik Coromant
Model #: 8036265
Product Specifications
| Mill Diameter (Decimal Inch) | 0.6250 |
| Mill Diameter (Inch) | 5/8 |
| Length of Cut (Inch) | 2-1/4 |
| Corner Radius (Decimal Inch) | 0.0600 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| End Type | Corner Radius |
| Flute Type | Spiral |
| Helix Angle | 36.5 |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | Yes |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | X1BH |
| Single Or Double End | Single |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 2.2500 |
