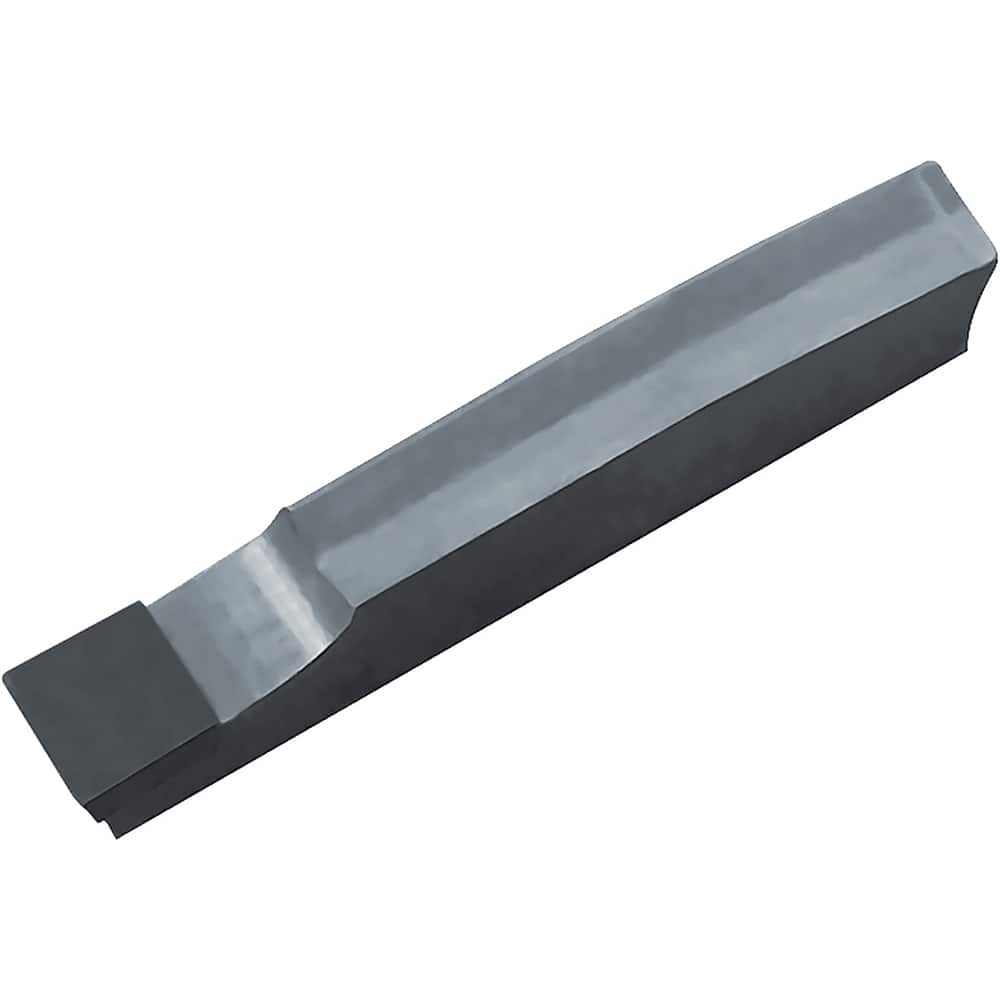

Grooving Insert: GDGS3020NB KBN05M, Cubic Boron Nitride Megacoat, Neutral, 3 mm Cutting Width, 25.5 mm Max Depth, Series KGD
Item #: 10162774
Brand: Kyocera
Model #: TBN10741
Product Specifications
| Insert Style | GDGS |
| Insert Size | 3020 |
| Insert Material | Cubic Boron Nitride |
| Manufacturer Grade | KBN05M |
| Cutting Width (mm) | 3.00 |
| Maximum Depth of Cut (mm) | 25.50 |
| Insert Holding Method | Clamp |
| Cutting Height (mm) | 4.30 |
| Insert Hand | Neutral |
| Corner Radius (mm) | 0.40 |
| Maximum Depth Of Cut Range (mm) | 20.00+ |
| Rake | Positive |
| Multi-use Tool | No |
| Series | KGD |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.7874 |
| Manufacturers Catalog Number | GDGS3020N040NBKBN05M |
| Chip Breaker | NB |
| Coating/Finish | Megacoat |
| Number Of Cutting Edges | 1 |
| For Use With | KGDR...JX-3(?); KGDR...-3(?); KGDR...JX-2.4(?); KGDL...JX-2.4(?); KGDR...JX-2(?); KGDR...-2.4(?); KGDL...JX-2(?); KGDL...-2(?); KGDL...JX-3(?); KGDR...-2(?); KGDL...-3(?); KGDL...-2.4(?) |
| Insert Thickness | 4.00 |
