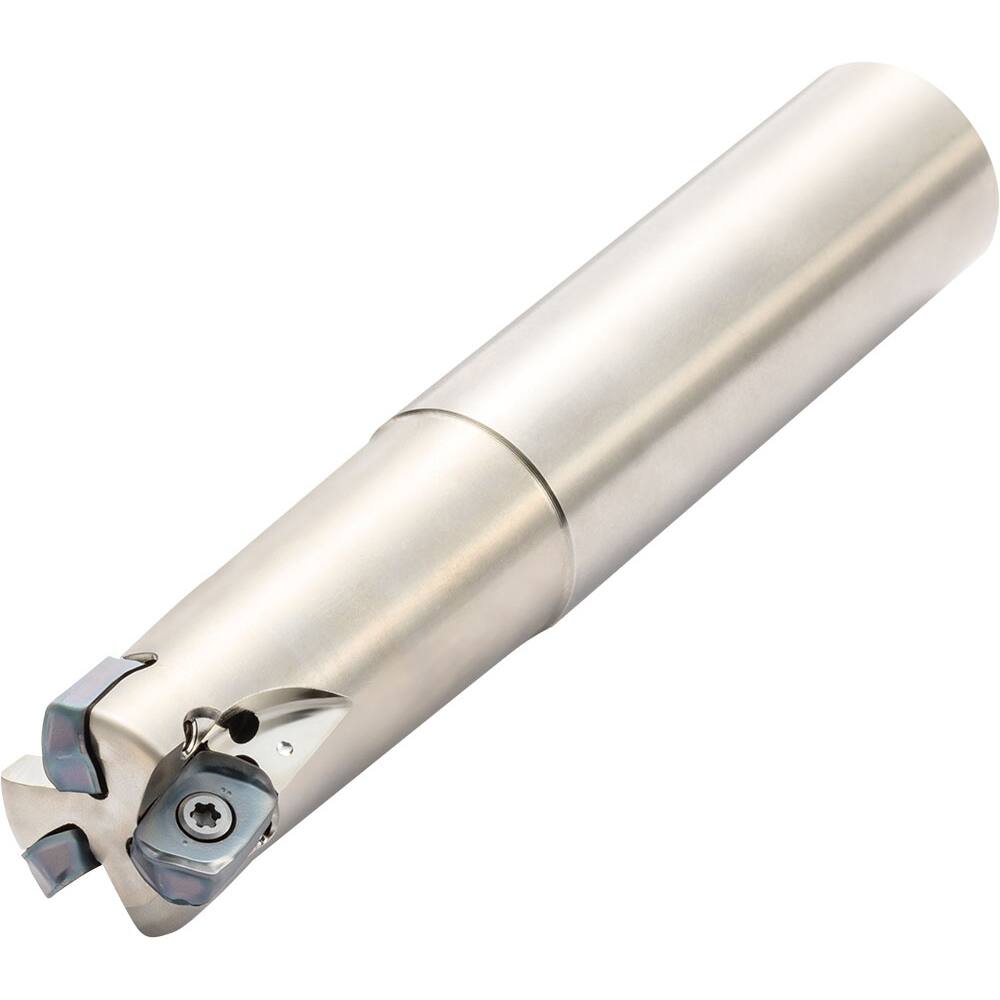

Kyocera - Indexable High-Feed End Mills; Cutting Diameter (mm): 29.00 ; Maximum Depth of Cut (mm): 2.50 ; Shank Type: Cylindrical ; Shank Diameter (mm): 32.0000 ; Number of Cutter Inserts: 5 ; Insert Style: LOMU
Item #: 10184562
Brand: Kyocera
Model #: 8866854
Product Specifications
Indexable High-Feed End Mills; Cutting Diameter (mm): 29.00 ; Maximum Depth of Cut (mm): 2.50 ; Shank Type: Cylindrical ; Shank Diameter (mm): 32.0000 ; Number of Cutter Inserts: 5 ; Insert Style: LOMU
| Cutting Diameter (mm) | 29.00 |
| Maximum Depth of Cut (mm) | 2.50 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.0000 |
| Number of Cutter Inserts | 5 |
| Insert Style | LOMU |
| Toolholder Style | MFH |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| End Mill Type | High Feed |
| Number of Flutes | 5 |
| Maximum RPM | 10000.000 |
| Through Coolant | Yes |
| Overall Length (mm) | 150.0000 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | LOMU040410ERGM |
| Series | MFH |
| Lead Angle | 90 |
| Head Length (mm) | 50.00 |
| Manufacturers Catalog Number | MFH40S32045T |
