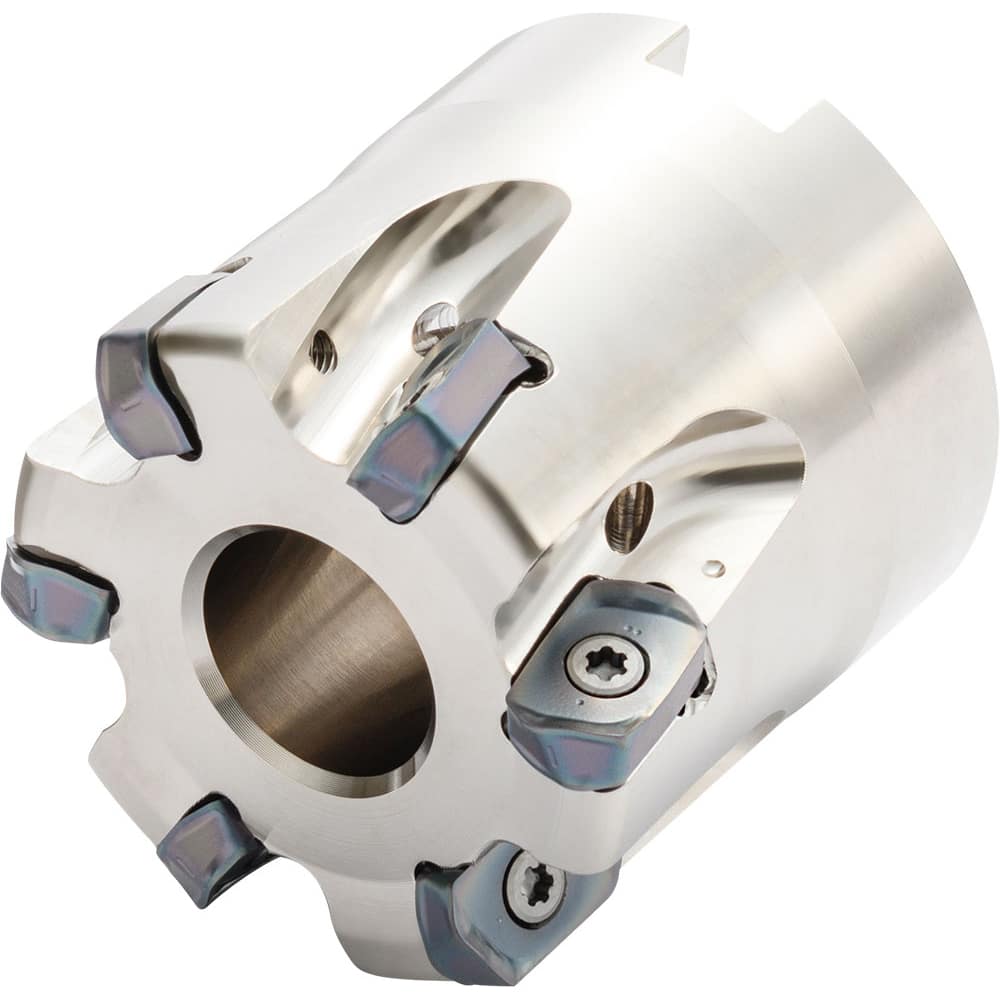

Kyocera - Indexable High-Feed Face Mills; Cutting Diameter (mm): 69.00 ; Maximum Depth of Cut (mm): 2.50 ; Arbor Hole Diameter (mm): 27.00 ; Overall Height (mm): 63.00000 ; Series: MFH ; Cutter Style: MFH
Item #: 10184810
Brand: Kyocera
Model #: 8866881
Product Specifications
Indexable High-Feed Face Mills; Cutting Diameter (mm): 69.00 ; Maximum Depth of Cut (mm): 2.50 ; Arbor Hole Diameter (mm): 27.00 ; Overall Height (mm): 63.00000 ; Series: MFH ; Cutter Style: MFH
| Cutting Diameter (mm) | 69.00 |
| Maximum Depth of Cut (mm) | 2.50 |
| Arbor Hole Diameter (mm) | 27.00 |
| Overall Height (mm) | 63.00000 |
| Series | MFH |
| Cutter Style | MFH |
| Number of Cutter Inserts | 10 |
| Insert Compatibility | LOMU040410ERGM |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 7100.000 |
| Number of Flutes | 10 |
| Through Coolant | Yes |
| Keyway Width (mm) | 12.40 |
| Manufacturers Catalog Number | MFH080R0410TM |
