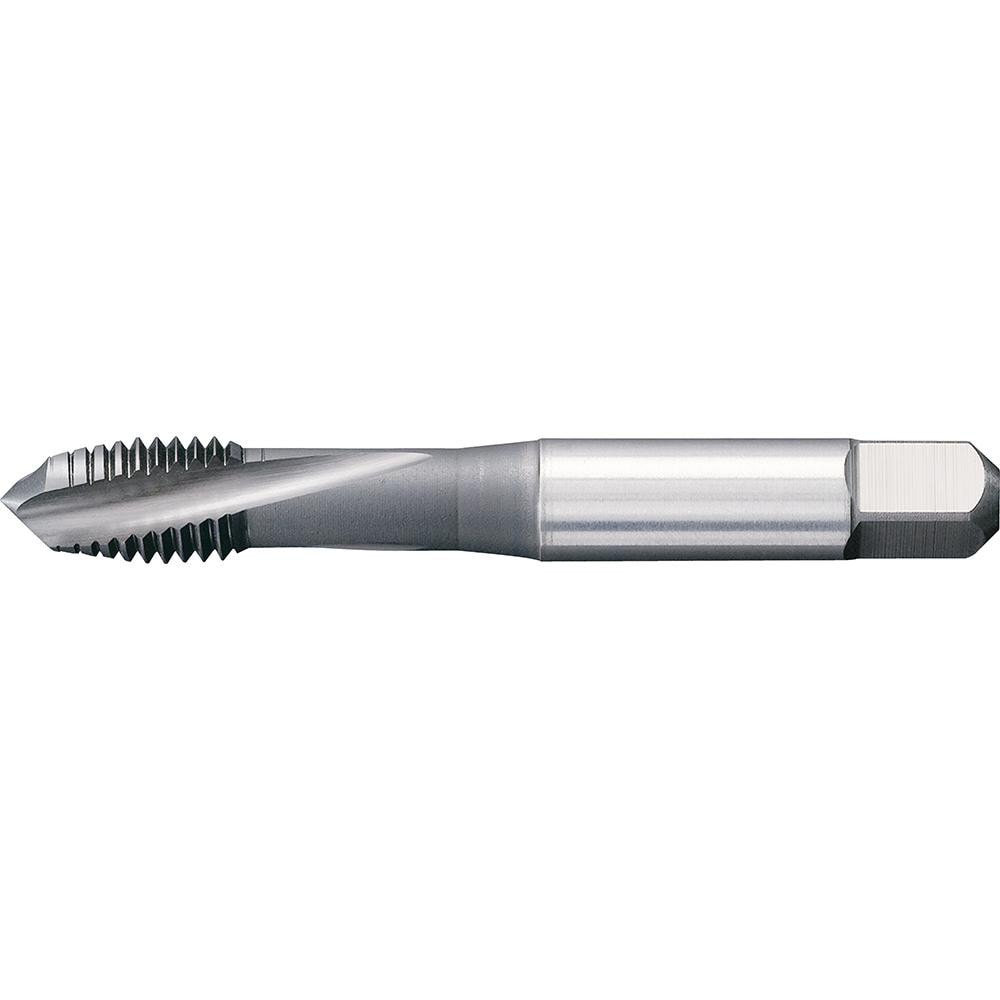

Brand: Widia / Part #: 3955044
Item #: 97426175
Brand: Widia
Model #: 3955044
Product Specifications
| Thread Size (mm) | M8x1.25 |
| Chamfer | Plug |
| Thread Limit | D7 |
| Class Of Fit | 6HX |
| Number Of Flutes | 3 |
| Material | Powdered Metal |
| Threads per Inch | 20 |
| Thread Direction | Right Hand |
| Flute Direction | Left Hand |
| Coating/Finish | TiCN |
| Thread Depth (mm) | 28.70 |
| Coolant Through | No |
| Thread Length (mm) | 12.20 |
| Overall Length (mm) | 68.9000 |
| Thread Pitch (mm) | 1.25 |
| Thread Standard | Metric |
| Material Grade | WU32MG |
| Shank Diameter (mm) | 8.0800 |
| Square Length (mm) | 9.50 |
| Square Size (mm) | 5.99 |
| Material Application | High-Temperature Alloy; Steel |
| Series | GT20 |
