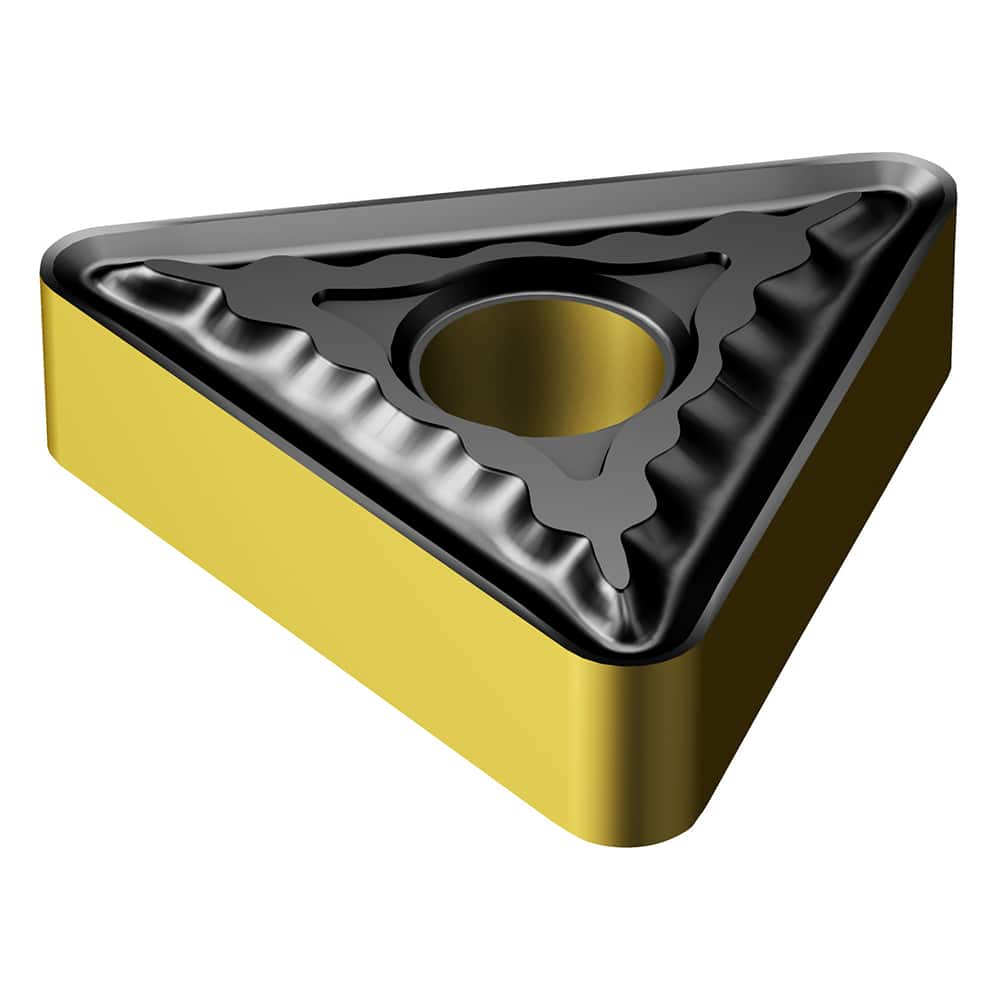

TNMG221-QM 4425 Carbide Turning Insert Al2O3/TiN/TiCN Finish, Neutral, 1/4″ Inscribed Circle, 0.0156″ Corner Radius, 1/8″ Thick, 60° Diamond
Item #: 10208213
Brand: Sandvik Coromant
Model #: 7861094
Product Specifications
| Insert Style | TNMG |
| Insert Shape Code | T |
| Insert Size Code | 1103 |
| Insert Shape | Triangle |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 4425 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.26 |
| Hole Diameter (Decimal Inch) | 0.0890 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 60.0 |
| Relief Angle | 0 |
| Series | T-Max P |
| Coating Process | CVD |
| Wiper Edge | No |
| Number Of Cutting Edges | 6 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | TNMG221QM4425 |
| Iso Code | TNMG 11 03 04-QM 4425 |
| Manufacturers Catalog Number | TNMG 221-QM |
| Cutting Direction | Neutral |
| Chip Breaker | QM |
| Industry Standard Number | TNMG 11 03 04-QM 4425 |
| Coating/Finish | TiCN; TiN; Al2O3 |
 | |
| MSC Part # | 10208213 |
| Mfr Part # | 7861094 |
| Country of OriginCountry of Origin is subject to change | Sweden |
