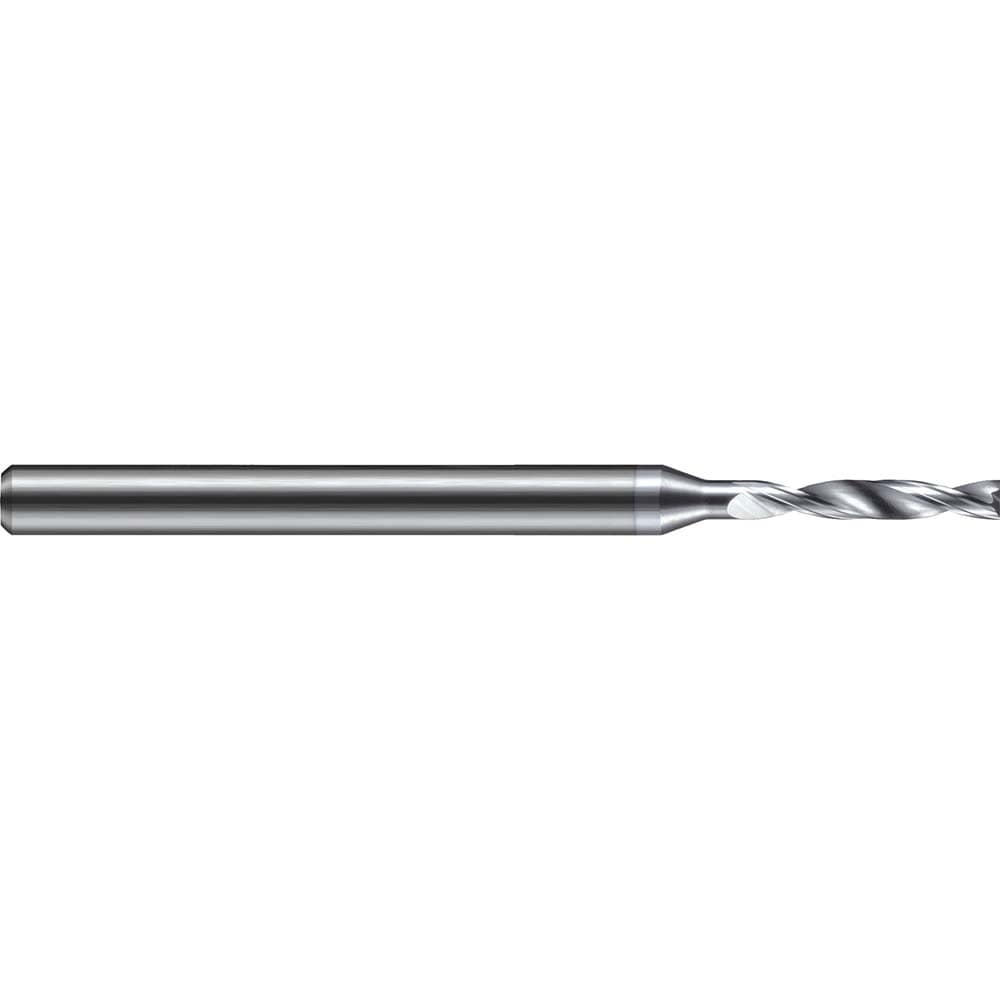

Jobber Drill: 9/64" Dia, 180 deg Point, Solid Carbide
Item #: 91615658
Brand: Harvey Tool
Model #: FBF1406-C8
Product Specifications
| Drill Bit Size (Inch) | 9/64 |
| Drill Bit Size (mm) | 3.57 |
| Drill Bit Size (Decimal Inch) | 0.1406 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 180 |
| Coating/Finish | TiB2 |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Flat-Bottom |
| Coolant Through | No |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Overall Length (mm) | 63.00 |
| Overall Length (Decimal Inch) | 2.4803 |
| Flute Length (mm) | 17.00 |
| Flute Length (Decimal Inch) | 0.6693 |
| Series | Miniature High Performance Drills - Flat Bottom Drill - Metric |
| Shank Diameter (mm) | 6 |
| Shank Type | Straight |
| UNSPSC Code | 23241634 |
| Country of Origin | UNITED STATES |
