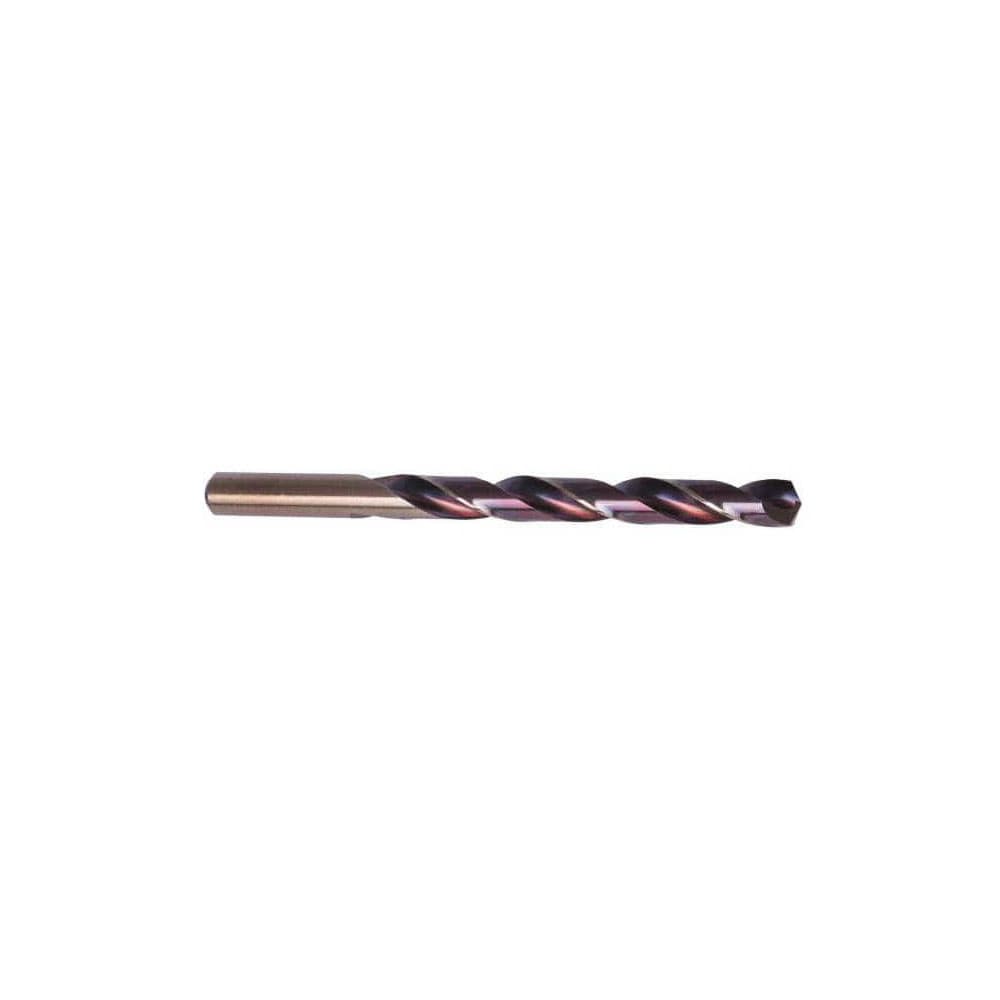

Jobber Drill: Letter L, 135 deg Point, High Speed Steel
Item #: 84405463
Brand: Precision Twist Drill
Model #: 5996359
Product Specifications
| Drill Bit Size (Letter) | L |
| Drill Bit Size (Decimal Inch) | 0.2900 |
| Drill Bit Material | HSS |
| Drill Point Angle (Degrees) | 135 |
| Coating/Finish | Straw |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Primary Workpiece Material | High-Temp Alloy |
| Coolant Through | No |
| Number of Flutes | 2 |
| Flute Length (Inch) | 2-15/16 |
| Primary Workpiece Material Code | P; S; K; M |
| Shank Diameter (Decimal Inch) | 0.2900 |
| Overall Length (mm) | 107.95 |
| Overall Length (Inch) | 4-1/4 |
| Overall Length (Decimal Inch) | 4.2500 |
| Spiral Type | Regular |
| Flute Length (mm) | 74.61 |
| Flute Length (Decimal Inch) | 2.9375 |
| Series | HX10-HX15-HX18 |
| Tool Application | Drilling |
| Flute By Diameter Ratio | 10xD |
| Maximum Drilling Depth (Decimal Inch) | 2.9375 |
| Maximum Drilling Depth (Inch) | 2-15/16 |
| Shank Length (Decimal Inch) | 1.3125 |
| Shank Length (Inch) | 1-5/16 |
| Number of Flats | 0 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Tool Performance | General Purpose |
| Standards | ANSI |
| Double Margin | No |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.2500 - 0.3000 |
| Specification Designation | ANSI |
| UNSPSC Code | 23241634 |
| Country of Origin | Brazil |
