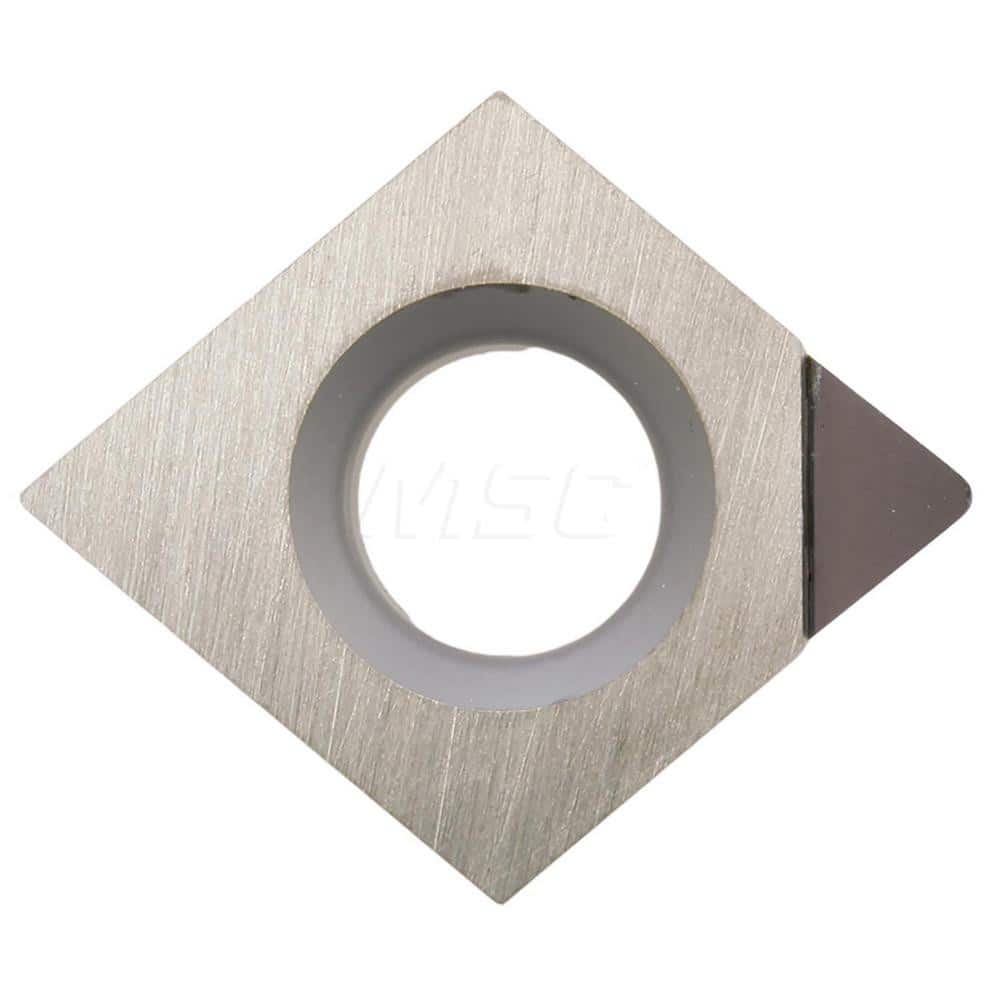

Kyocera CPMH 25151 KPD001 Grade PCD, 11 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (N) Non-Ferrous Metals, (S) Titanium Alloy

Item #: 10247237
Brand: Kyocera
Model #: TBR01872

Product Specifications

Insert Style CPMH

Insert Shape Code C

Insert Size Code 25151

Insert Shape Diamond

Clearance Code P

Tolerance Code M

Insert Material Polycrystalline Diamond

Manufacturer Grade KPD001

Hole Diameter (Decimal Inch) 0.1378

Inscribed Circle (Inch) 5/16

Insert Holding Method Screw; Clamp

Width (Inch) 5/16

Insert Hand Neutral

Insert Thickness (Decimal Inch) 0.0937

Corner Radius (Decimal Inch) 0.0157

Included Angle 80.0

Relief Angle 11

Rake Positive

Primary Workpiece Material S; N

Iso Code CPMH080204

Manufacturers Catalog Number CPMH25151KPD001

Chip Breaker H

Style CPMH

Full Radius No

Coating/Finish Uncoated

Multi-Use Application Internal Facing; Boring
