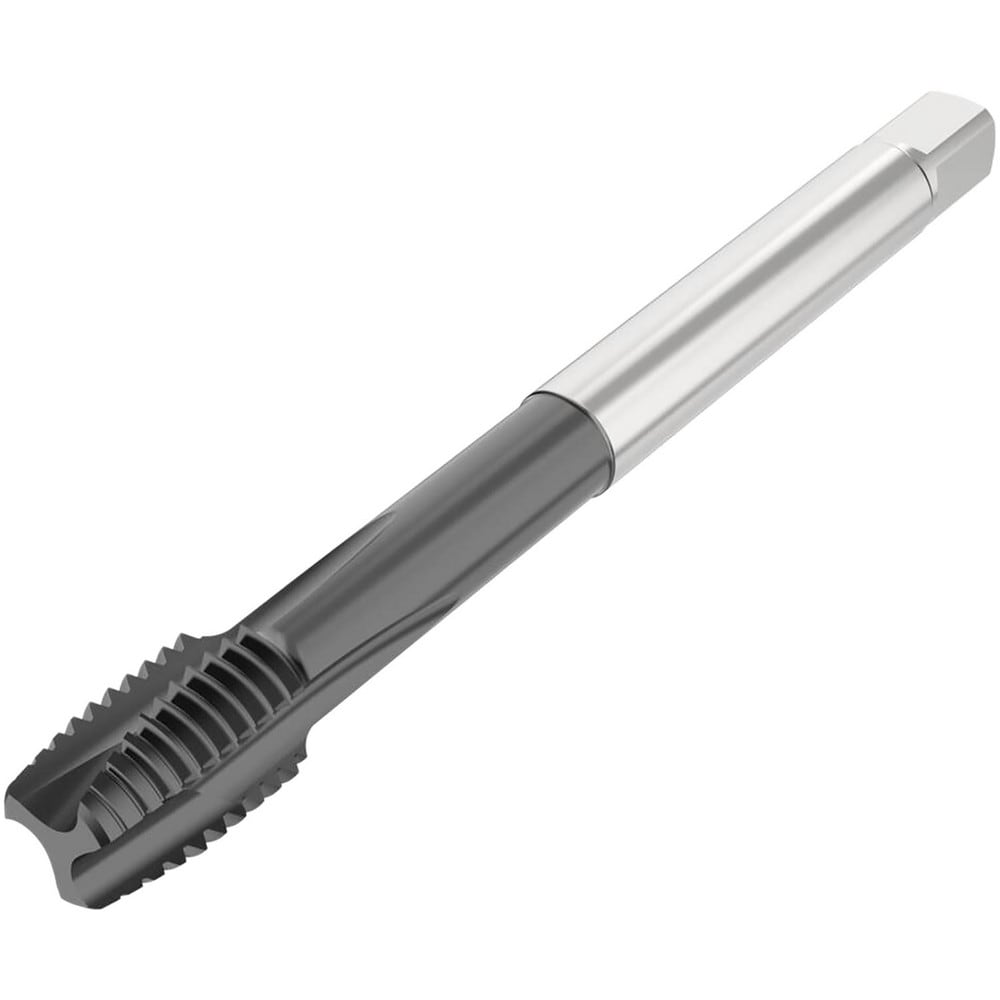

Brand: Seco / Part #: 10139416
Item #: 99603417
Brand: Seco
Model #: 10139416
Product Specifications
| Tap Type | Machine |
| Thread Size (Inch) | 7/16-14 |
| Class Of Fit | 2B |
| Number Of Flutes | 3 |
| Chamfer | Modified Bottoming |
| Material | HSS-E-PM |
| Coating/Finish | HL |
| Threads per Inch | 14 |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Thread Standard | UNC |
| Overall Length (mm) | 110.0000 |
| Thread Pitch (mm) | 1.81 |
| Thread Length (mm) | 18.00 |
| Thread Depth (mm) | 18.00 |
| Oversize | No |
| Application | Through-Hole Threading |
| Shank Diameter (mm) | 11.0000 |
| Tapping Depth (mm) | 81.00 |
| Material Application | Non-Ferrous Metal; Superalloy; Stainless Steel; Cast Iron; Steel |
| Series | T34 |
| Neck Length | 63.00 |
| Shank Length (mm) | 29.000 |
