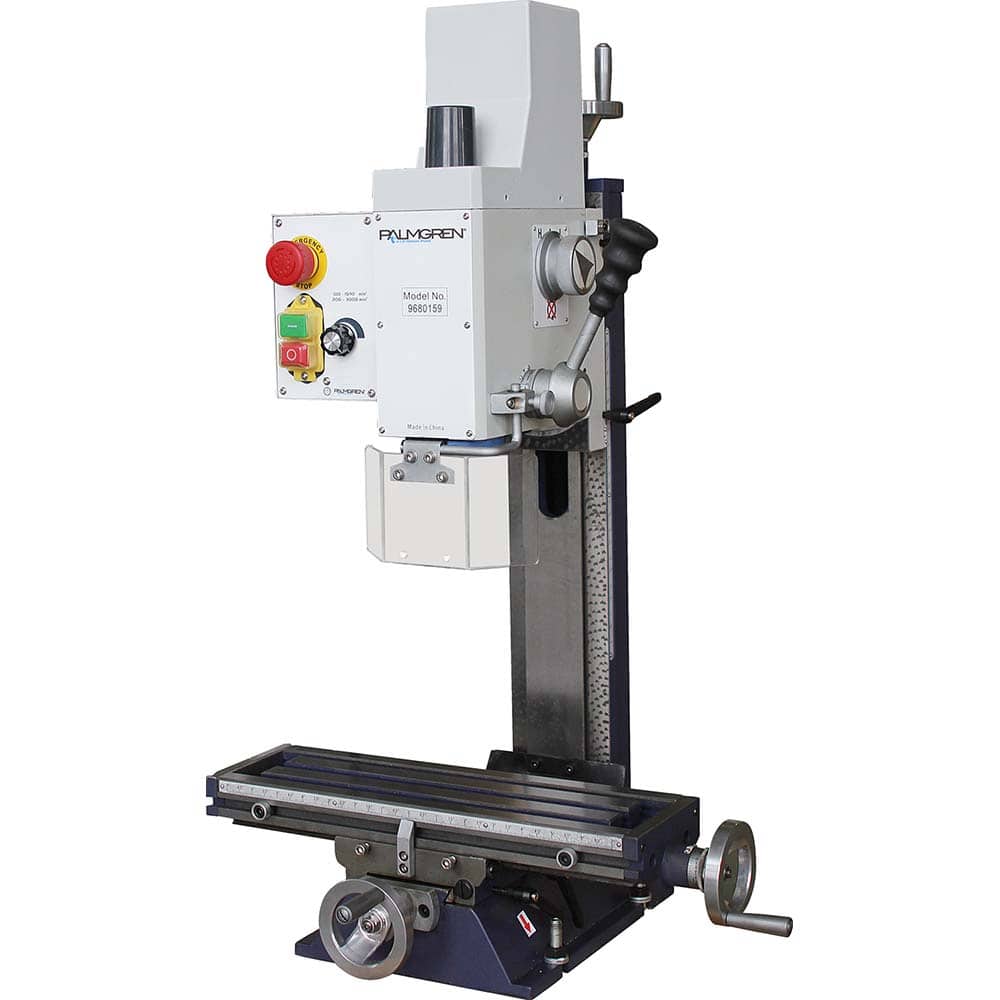

Palmgren - Mill Drill Machines; Spindle Speed Control: Variable Speed; Geared Head ; Swing Distance (Inch): 13-1/2 ; Phase: 1 ; Table Length (Inch): 15-3/4 ; Table Width (Inch): 4-3/4 ; Longitudinal Travel (Inch): 8-21/32
Item #: 10475341
Brand: Palmgren
Model #: 9680159
Product Specifications
Mill Drill Machines; Spindle Speed Control: Variable Speed; Geared Head ; Swing Distance (Inch): 13-1/2 ; Phase: 1 ; Table Length (Inch): 15-3/4 ; Table Width (Inch): 4-3/4 ; Longitudinal Travel (Inch): 8-21/32
| Spindle Speed Control | Variable Speed; Geared Head |
| Swing Distance (Inch) | 13-1/2 |
| Phase | 1 |
| Table Length (Inch) | 15-3/4 |
| Table Width (Inch) | 4-3/4 |
| Longitudinal Travel (Inch) | 8-21/32 |
| Cross Travel (Inch) | 6-3/8 |
| Number of Spindle Speeds | Variable |
| Minimum Spindle Speed (RPM) | 100 |
| Maximum Spindle Speed (RPM) | 3000 |
| Spindle Travel Length (Inch) | 2 |
| Spindle Taper Size | 2MT |
| Drilling Capacity in Steel (Inch) | 5/8 |
| T-Slot Size (Inch) | 3/8 |
| Maximum Spindle to Table Distance (Inch) | 8-1/4 |
| Left-Hand Head Tilt (Degrees) | 90.00 |
| Right-Hand Head Tilt (Degrees) | 90.00 |
| Horsepower (HP) | 5/8 |
| Voltage | 240 |
| Overall Length (Inch) | 17 |
| Overall Height (Inch) | 30 |
| Special Item Information | Two Stage Gearing Motor |
