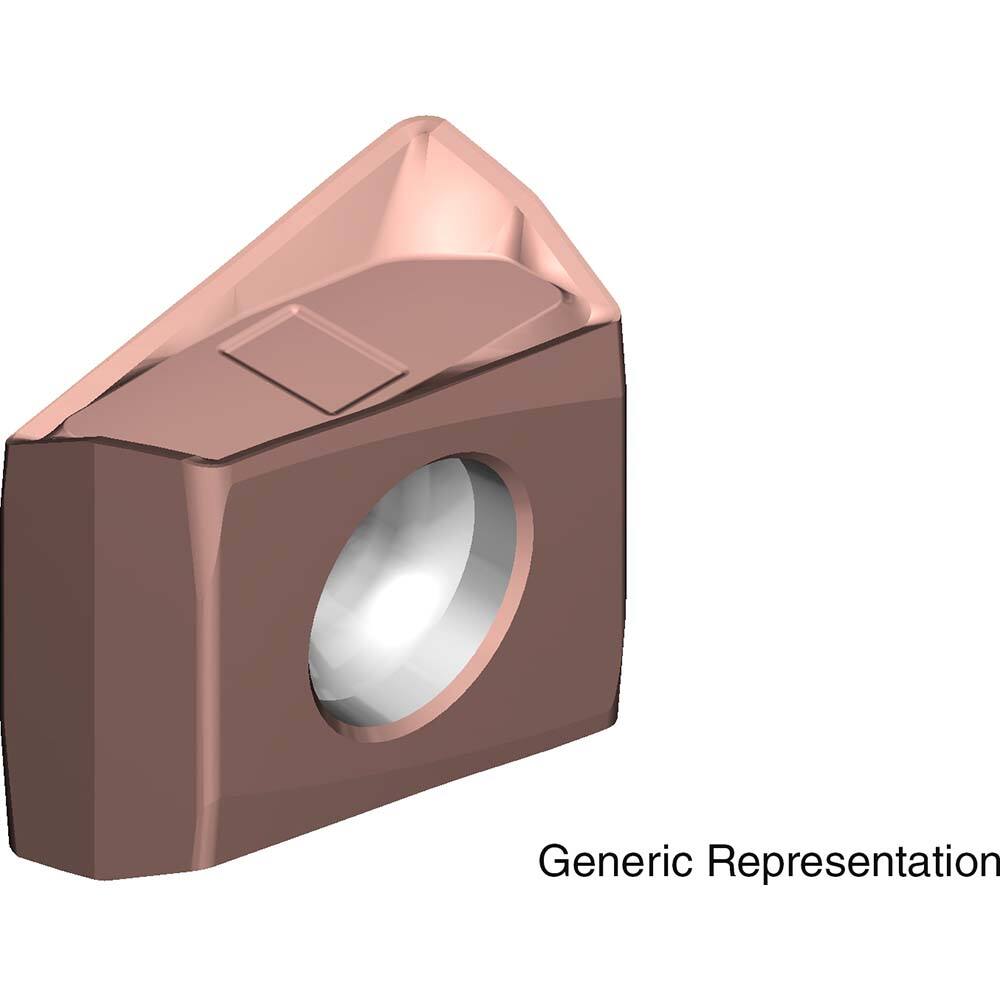

Sumitomo - LNEX130608PNELG ACM300 Carbide Milling Insert
Item #: 10548394
Brand: Sumitomo
Model #: 1P4W035
Product Specifications
| Insert Style | LNEX |
| Insert Size | 130608 |
| Material | Carbide |
| Manufacturer's Grade | ACM300 |
| Coating | TiAlN/AlCrN |
| Width (mm) | 13.00 |
| Thickness (mm) | 10.8000 |
| Corner Radius (mm) | 0.80 |
| Coating Process | PVD |
| Shape | Tangential |
| Maximum Depth of Cut (mm) | 12.00 |
| Manufacturers Catalog Number | LNEX130608PNELG ACM300 |
| Cutter Series Compatibility | TSX |
| Cutting Direction | Left Hand |
| Single or Double End | Double |
