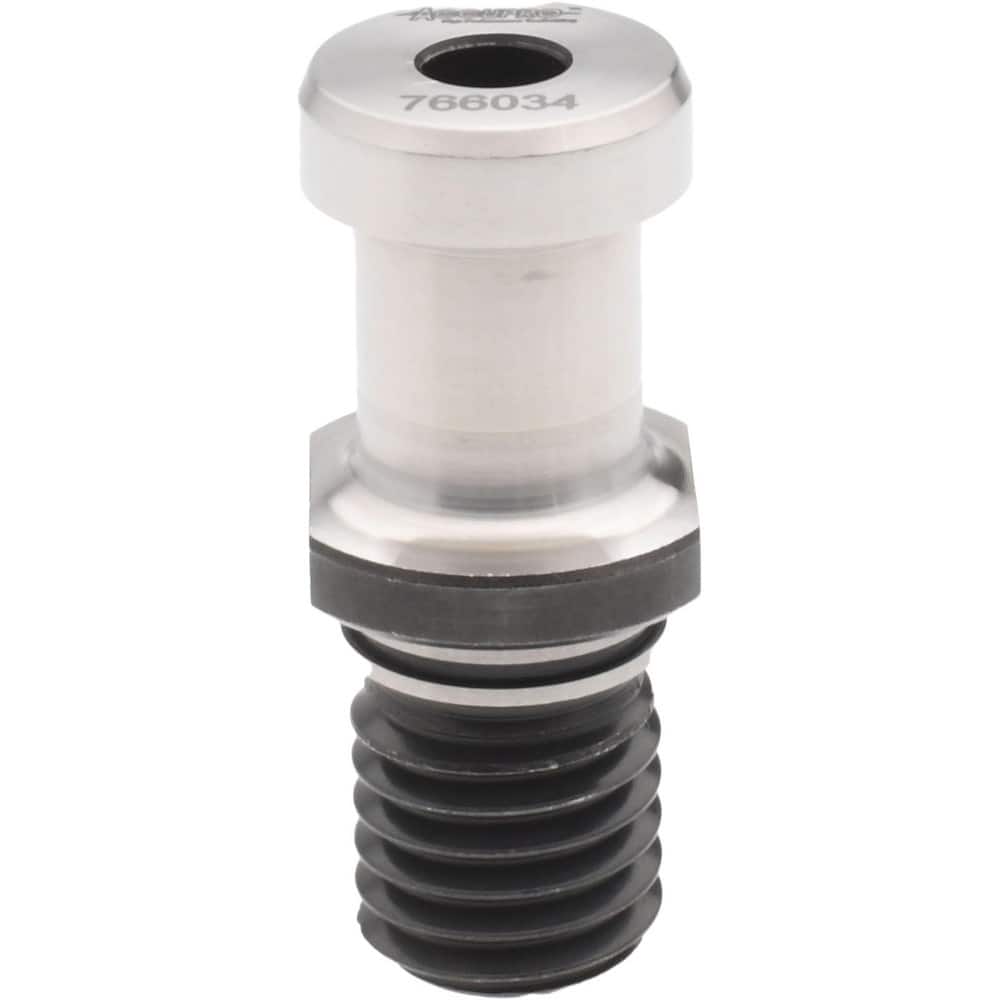

Retention Knob: CAT40, 5/8-11 Thread, 15 ° Angle Radius, 0.75″ Knob Dia 2.01″ Knob to Flange, 0.55″ Pilot Dia, 2.01″ OAL
Item #: 10554293
Brand: Accupro
Model #: 766034
Product Specifications
| Taper Size | CAT40 |
| Thread Size (Inch - 0 Decimals) | 5/8-11 |
| Overall Length (Decimal Inch) | 2.0100 |
| Angle Radius | 15 degree |
| Knob Diameter (mm) | 19.00 |
| Knob Diameter (Decimal Inch) | 0.7500 |
| Pilot Diameter (Decimal Inch) | 0.5500 |
| Knob to Flange Length (Decimal Inch) | 2.0100 |
| Coolant Hole Diameter (Decimal Inch) | 0.6700 |
