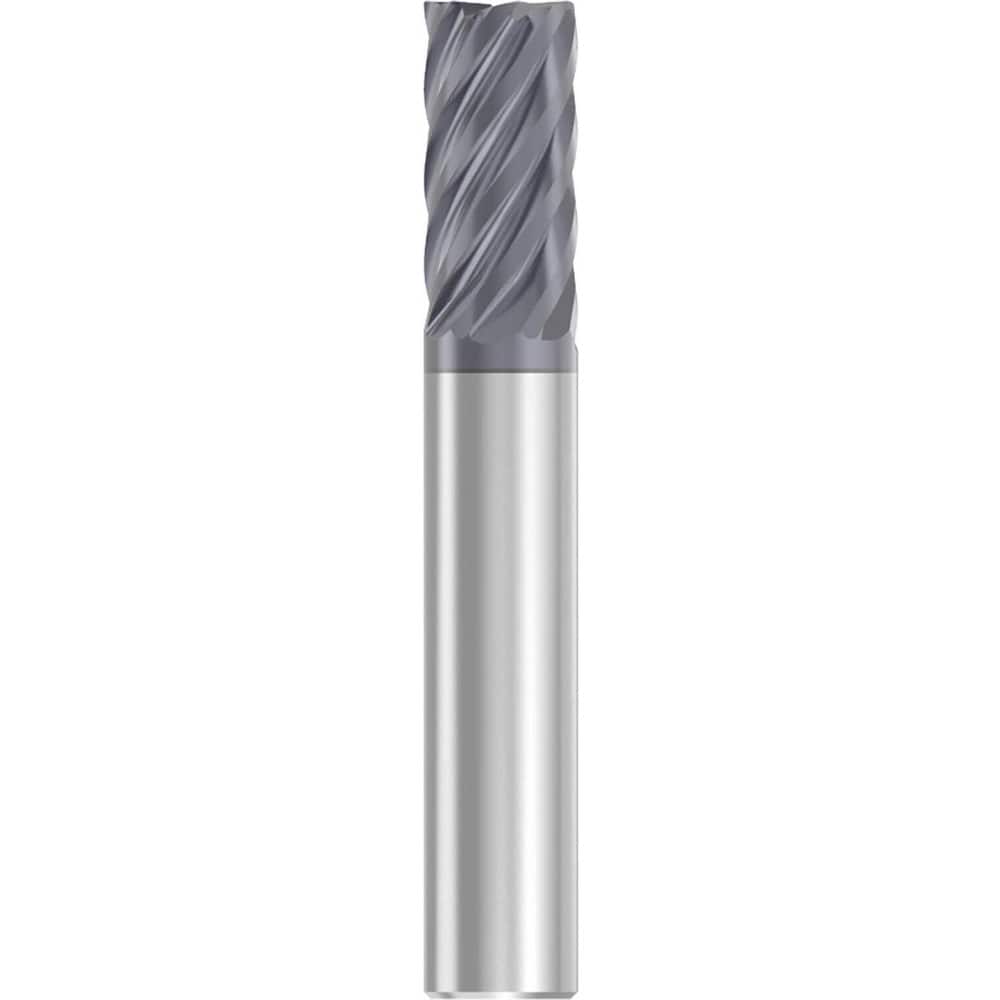

Roughing & Finishing End Mills; Mill Diameter (Decimal Inch): 0.6250; Mill Diameter (Inch): 5/8; End Type: Corner Chamfer; Chamfer Length (Decimal Inch): 0.0050; Number of Flutes: 7; Material: Solid Carbide; Finish/Coating: AlTiN; Length of Cut (Inch): 1-
Item #: 10750073
Brand: Niagara Cutter
Model #: 10072656
Product Specifications
| Mill Diameter (Decimal Inch) | 0.6250 |
| Mill Diameter (Inch) | 5/8 |
| End Type | Corner Chamfer |
| Chamfer Length (Decimal Inch) | 0.0050 |
| Number of Flutes | 7 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Length of Cut (Inch) | 1-1/4 |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (Inch) | 4 |
| Centercutting | Non-Center Cutting |
| Extended Reach | No |
| Chipbreaker | No |
| Shank Type | Straight |
| Helix Angle | 38 |
| Single or Double End | Single |
| Length Type | Short |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (Decimal Inch) | +0.0000/+0.0020 |
| Series/List | S738 |
| Material Application | Stainless Steel; Titanium; High Temperature Alloy |
