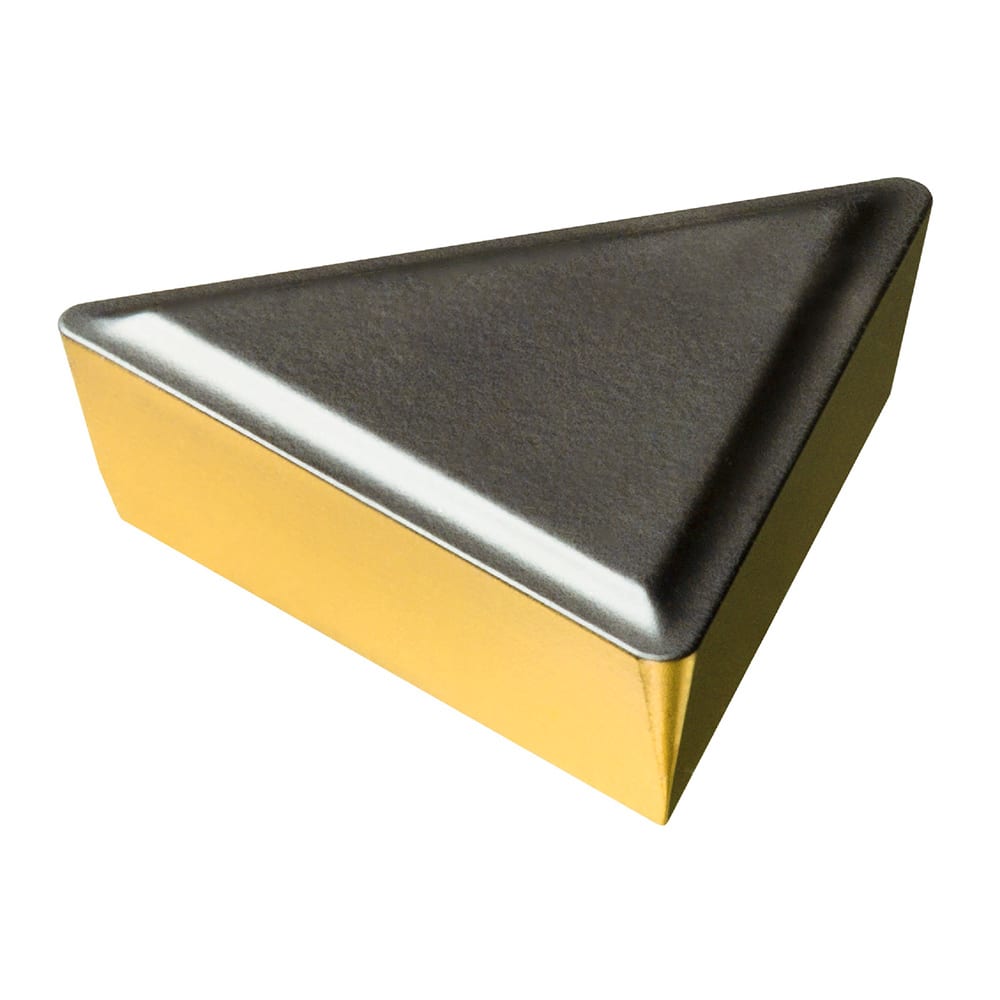

Turning Insert: TPMR 22 04 08 4425, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 0.0313″ Corner Radius, N/A Series TPMR
Item #: 10795698
Brand: Sandvik Coromant
Model #: 8019558
Product Specifications
| Insert Style | TPMR |
| Insert Shape Code | T |
| Insert Size Code | 2204 |
| Clearance Code | P |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 4425 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Relief Angle | 11 |
| Series | TPMR |
| Coating Process | CVD |
| Primary Workpiece Material | Steel |
| Secondary Workpiece Material | K |
| Iso Code | TPMR 22 04 08 4425 |
| Manufacturers Catalog Number | TPMR 22 04 08 4425 |
| Cutting Direction | Neutral |
| Chip Breaker | 53 |
| Coating/Finish | TiCN; TiN; Al2O3 |
