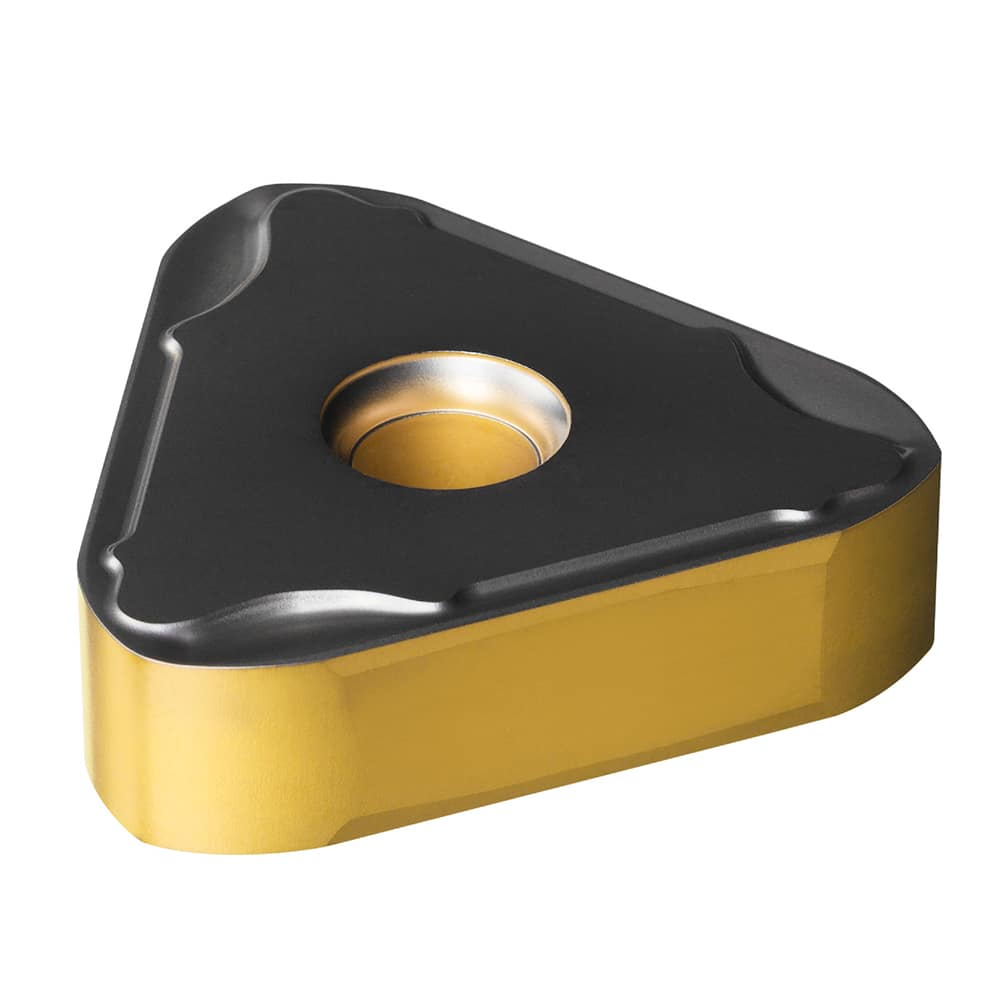

Turning Insert: TNMX 49 10 51-MF 4425, TiCN, Al2O3 & TiN Finish, Left Hand, 0.4724″ Corner Radius, N/A
Item #: 10796118
Brand: Sandvik Coromant
Model #: 8019696
Product Specifications
| Insert Style | TNMX |
| Insert Shape Code | T |
| Insert Size Code | 4910 |
| Clearance Code | N |
| Tolerance Code | M |
| Manufacturer Grade | 4425 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Inscribed Circle (Decimal Inch) | 1.1250 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Left Hand |
| Insert Thickness (Decimal Inch) | 0.3937 |
| Corner Radius (Decimal Inch) | 0.4724 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Iso Code | TNMX 49 10 51-MF 4425 |
| Manufacturers Catalog Number | TNMX 49 10 51-MF 4425 |
| Cutting Direction | Left Hand |
| Chip Breaker | PR |
| Coating/Finish | TiCN; TiN; Al2O3 |
