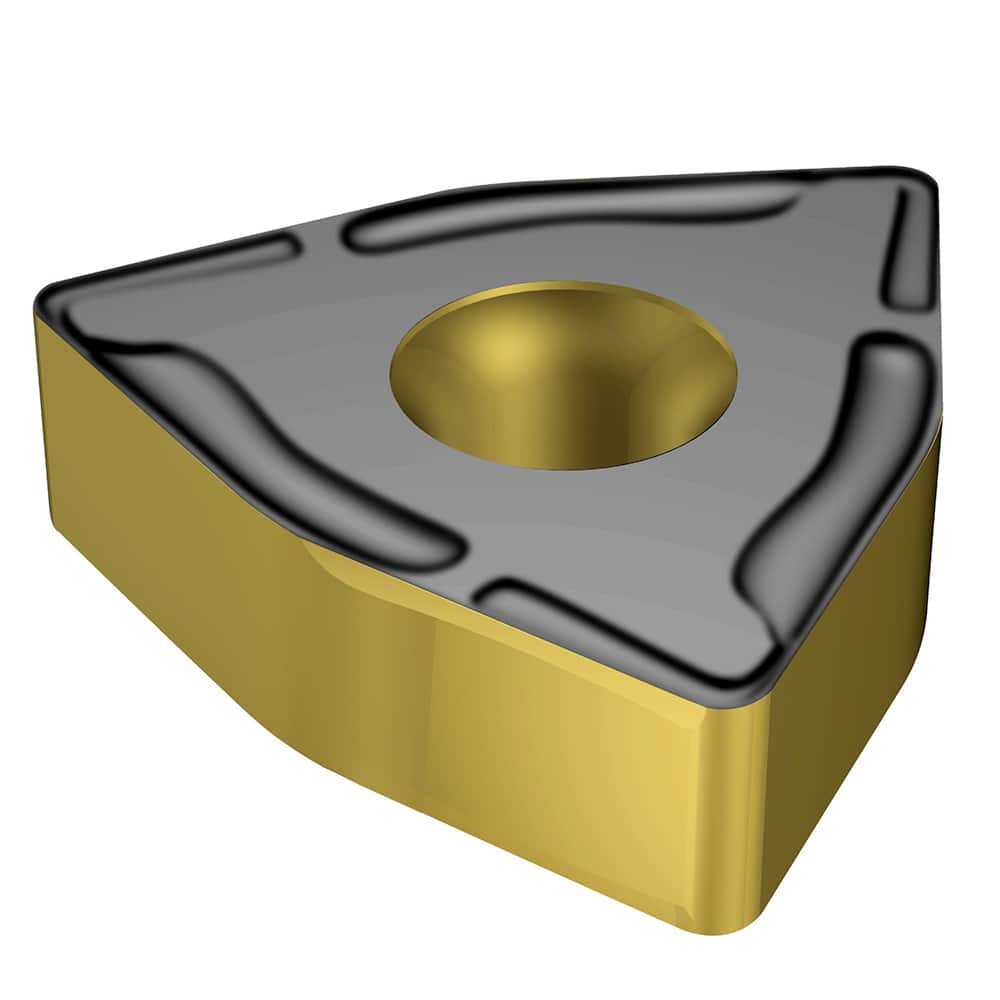

Turning Insert: WNMX 21 12 51-MM 4425, TiCN, Al2O3 & TiN Finish, Left Hand, 0.6299″ Corner Radius, N/A
Item #: 10796126
Brand: Sandvik Coromant
Model #: 8019697
Product Specifications
| Insert Style | WNMX |
| Insert Shape Code | W |
| Insert Size Code | 2112 |
| Clearance Code | N |
| Tolerance Code | M |
| Manufacturer Grade | 4425 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Inscribed Circle (Decimal Inch) | 1.2500 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Left Hand |
| Insert Thickness (Decimal Inch) | 0.5000 |
| Corner Radius (Decimal Inch) | 0.6299 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Iso Code | WNMX 21 12 51-MM 4425 |
| Manufacturers Catalog Number | WNMX 21 12 51-MM 4425 |
| Cutting Direction | Left Hand |
| Chip Breaker | PR |
| Coating/Finish | TiCN; TiN; Al2O3 |
