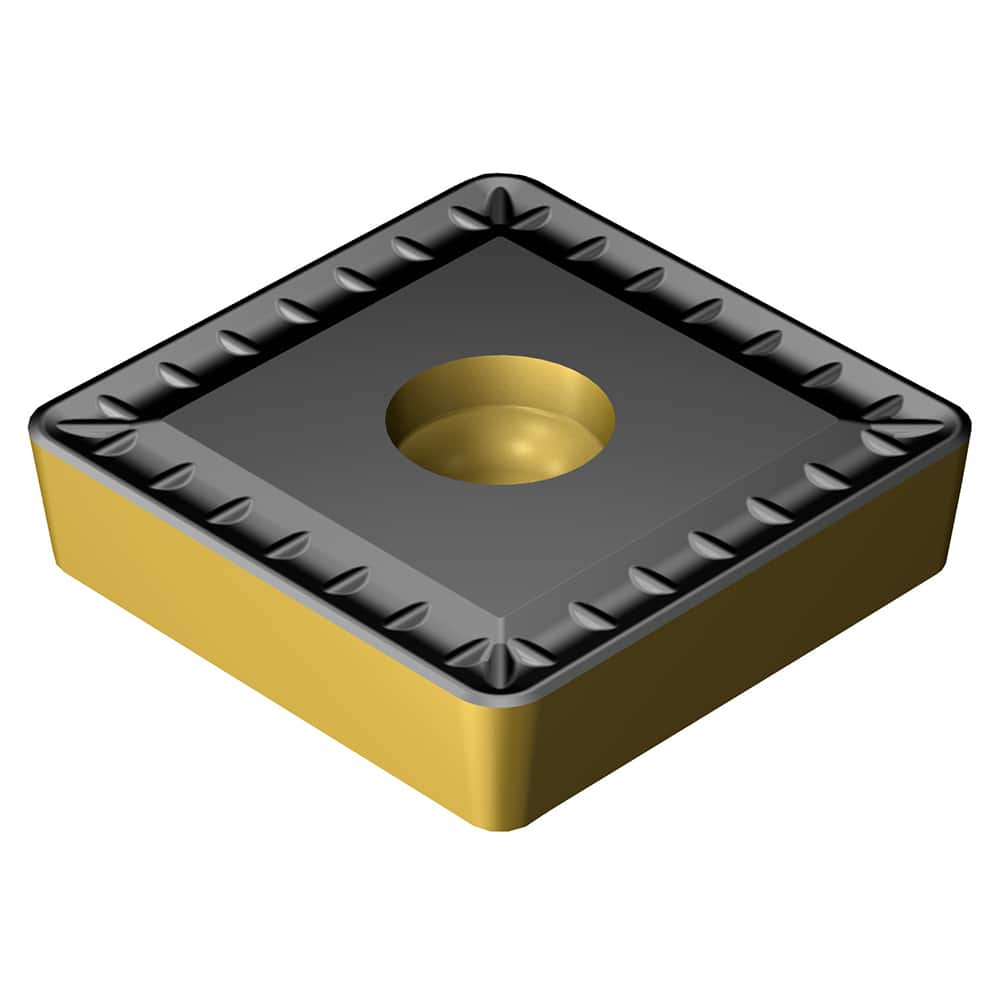

Turning Insert: SCMT 38 09 32-XL 4425, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 0.1250″ Corner Radius, N/A Series SCMT-XL

Item #: 10796183
Brand: Sandvik Coromant
Model #: 8019517

Product Specifications

Insert Style SCMT

Insert Shape Code S

Insert Size Code 3809

Clearance Code C

Tolerance Code M

Insert Material Solid Carbide

Manufacturer Grade 4425

Inscribed Circle (Decimal Inch) 1.5000

Insert Holding Method Screw; Clamp

Insert Hand Neutral

Insert Thickness (Decimal Inch) 0.3750

Corner Radius (Decimal Inch) 0.1250

Relief Angle 7

Series SCMT-XL

Coating Process CVD

Primary Workpiece Material Steel

Secondary Workpiece Material K

Iso Code SCMT 38 09 32-XL 4425

Manufacturers Catalog Number SCMT 38 09 32-XL 4425

Cutting Direction Neutral

Chip Breaker XL

Coating/Finish TiCN; TiN; Al2O3

Insert Style	SCMT
Insert Shape Code	S
Insert Size Code	3809
Clearance Code	C
Tolerance Code	M
Insert Material	Solid Carbide
Manufacturer Grade	4425
Inscribed Circle (Decimal Inch)	1.5000
Insert Holding Method	Screw; Clamp
Insert Hand	Neutral
Insert Thickness (Decimal Inch)	0.3750
Corner Radius (Decimal Inch)	0.1250
Relief Angle	7
Series	SCMT-XL
Coating Process	CVD
Primary Workpiece Material	Steel
Secondary Workpiece Material	K
Iso Code	SCMT 38 09 32-XL 4425
Manufacturers Catalog Number	SCMT 38 09 32-XL 4425
Cutting Direction	Neutral
Chip Breaker	XL
Coating/Finish	TiCN; TiN; Al2O3
