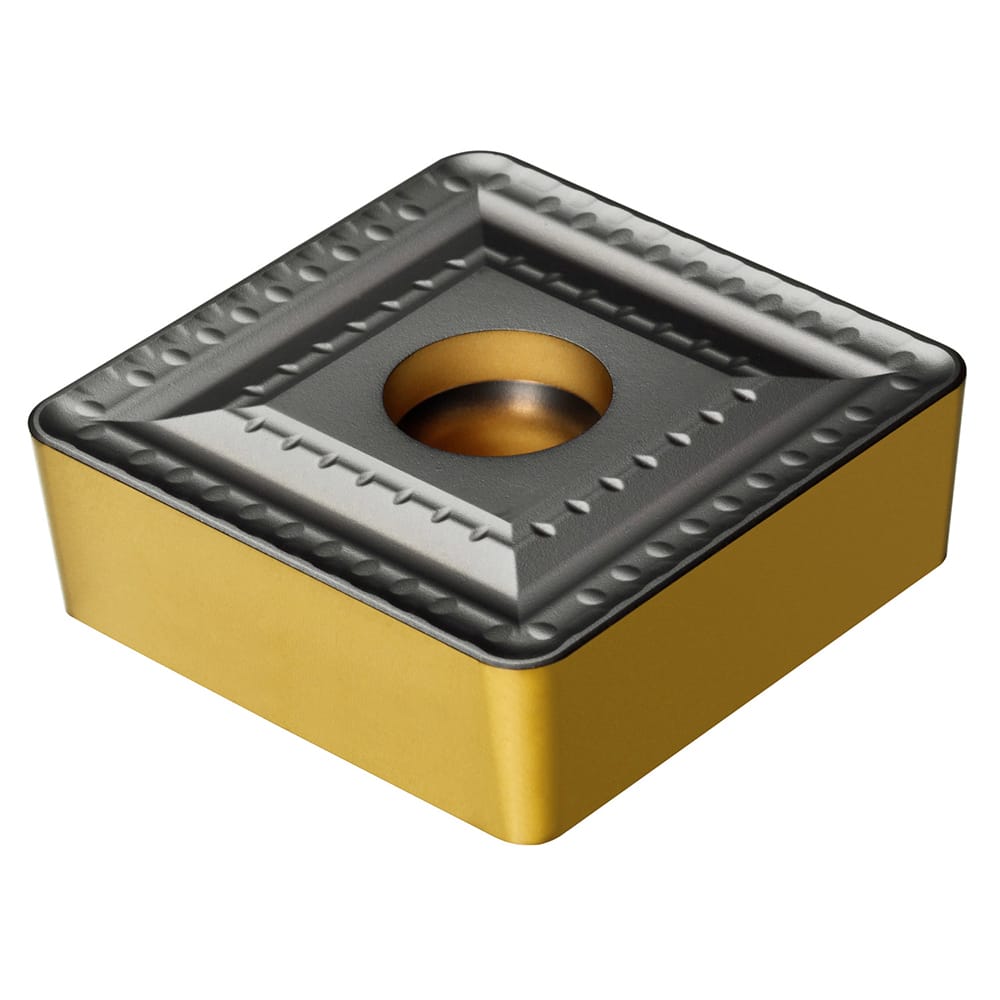

Turning Insert: SBMT 38 12 32-XH 4425, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 0.1250″ Corner Radius, N/A Series SBMT-XH
Item #: 10796209
Brand: Sandvik Coromant
Model #: 8019516
Product Specifications
| Insert Style | SBMT |
| Insert Shape Code | S |
| Insert Size Code | 3812 |
| Clearance Code | B |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 4425 |
| Inscribed Circle (Decimal Inch) | 1.5000 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.5000 |
| Corner Radius (Decimal Inch) | 0.1250 |
| Relief Angle | 5 |
| Series | SBMT-XH |
| Coating Process | CVD |
| Primary Workpiece Material | Steel |
| Secondary Workpiece Material | K |
| Iso Code | SBMT 38 12 32-XH 4425 |
| Manufacturers Catalog Number | SBMT 38 12 32-XH 4425 |
| Cutting Direction | Neutral |
| Chip Breaker | XH |
| Coating/Finish | TiCN; TiN; Al2O3 |
