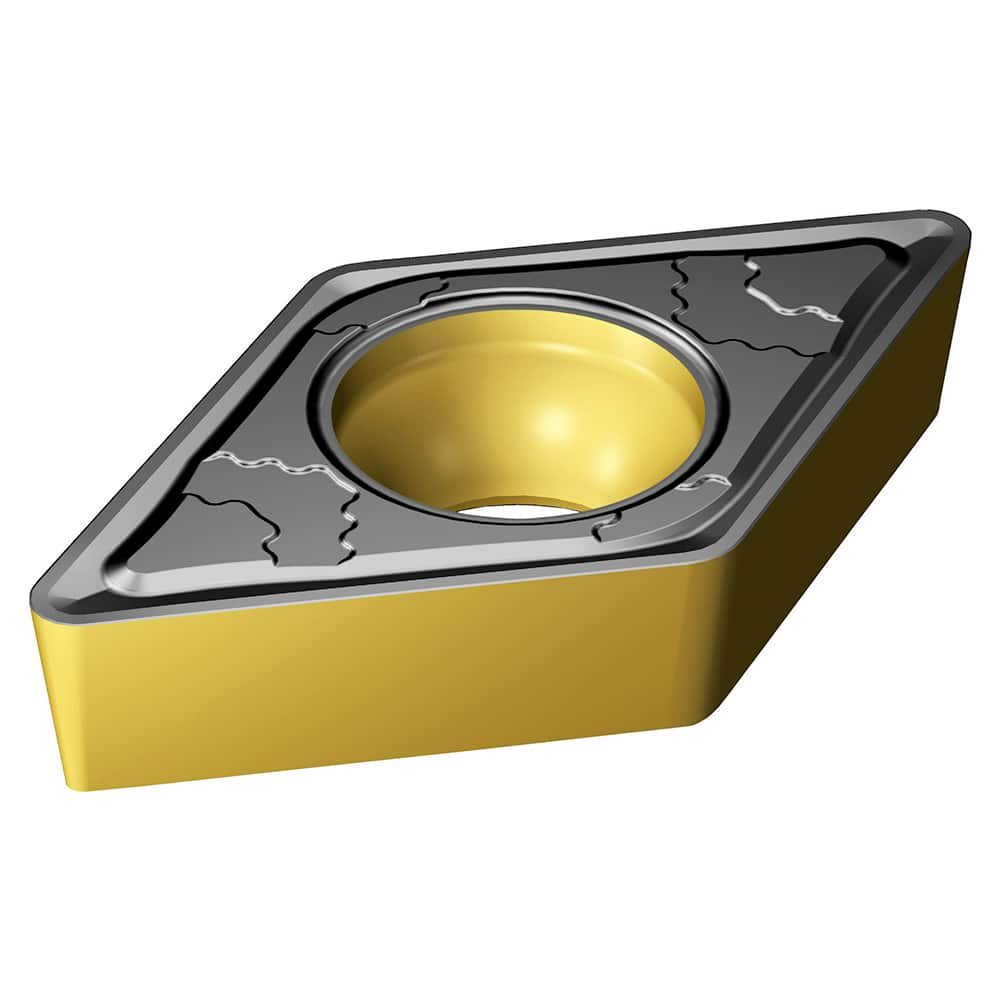

Turning Insert: DCMT 11 T3 08-PMC 4425, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 0.0313″ Corner Radius, N/A Series DCMT-PMC
Item #: 10796233
Brand: Sandvik Coromant
Model #: 8019346
Product Specifications
| Insert Style | DCMT |
| Insert Shape Code | D |
| Insert Size Code | 32.52 |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 4425 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Relief Angle | 7 |
| Series | DCMT-PMC |
| Coating Process | CVD |
| Primary Workpiece Material | Steel |
| Secondary Workpiece Material | K |
| Iso Code | DCMT 11 T3 08-PMC 4425 |
| Manufacturers Catalog Number | DCMT 11 T3 08-PMC 4425 |
| Cutting Direction | Neutral |
| Chip Breaker | PMC |
| Coating/Finish | TiCN; TiN; Al2O3 |
