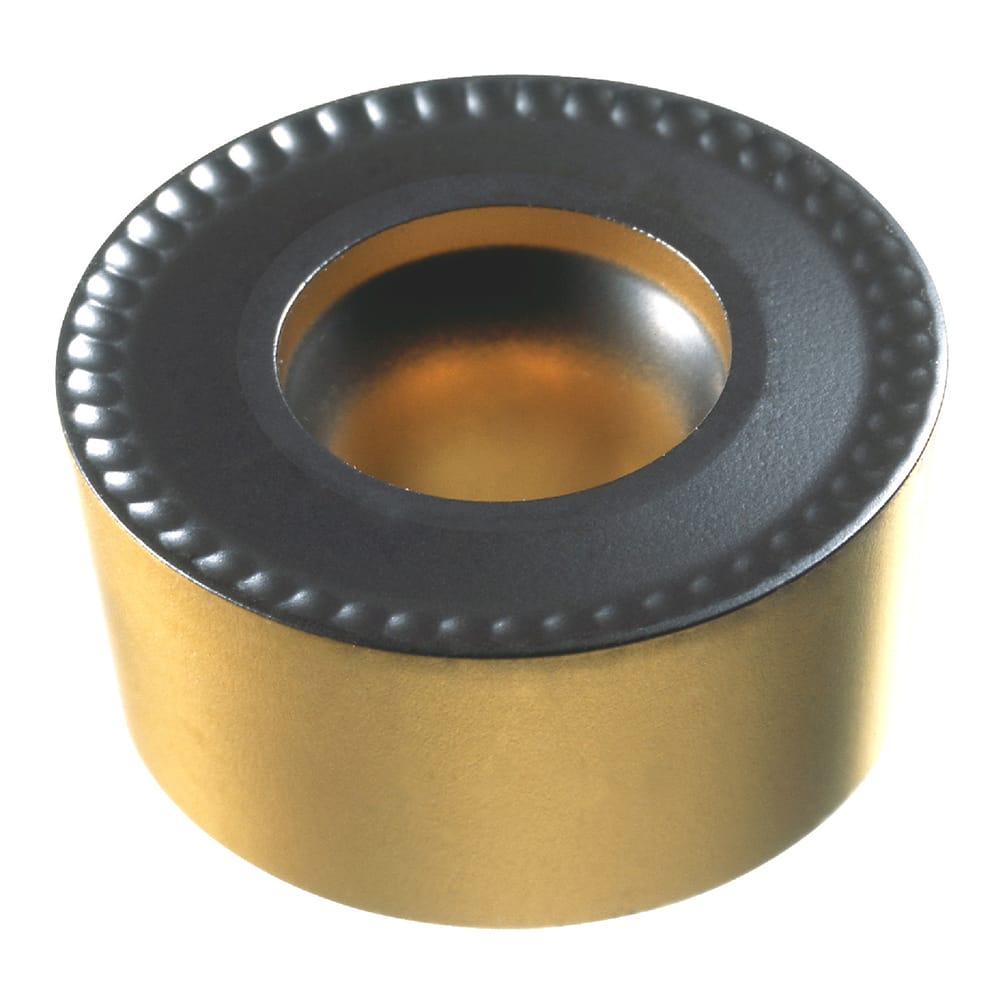

Turning Insert: RCMT 32 09 M0 4425, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 0.6299″ Corner Radius, N/A Round, Series RCMT
Item #: 10799625
Brand: Sandvik Coromant
Model #: 8019535
Product Specifications
| Insert Style | RCMT |
| Insert Shape Code | R |
| Insert Size Code | 3209 |
| Insert Shape | Round |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 4425 |
| Inscribed Circle (Decimal Inch) | 1.2598 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.3750 |
| Corner Radius (Decimal Inch) | 0.6299 |
| Series | RCMT |
| Coating Process | CVD |
| Primary Workpiece Material | Steel |
| Secondary Workpiece Material | K |
| Iso Code | RCMT 32 09 M0 4425 |
| Manufacturers Catalog Number | RCMT 32 09 M0 4425 |
| Cutting Direction | Neutral |
| Chip Breaker | M0 |
| Style | RCMT |
| Coating/Finish | TiCN; TiN; Al2O3 |
