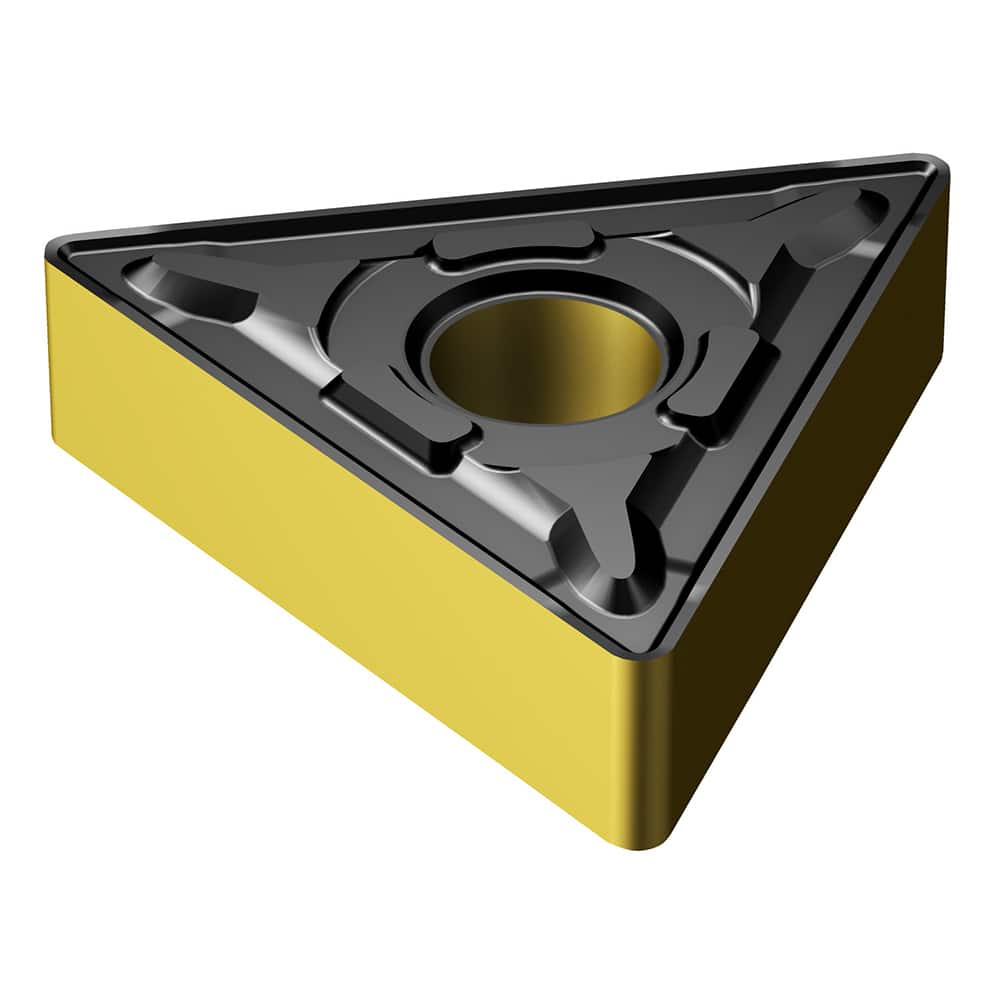

Turning Insert: TNMG 33 09 24-PR 4425, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 0.0938″ Corner Radius, N/A Triangle, Series TNMG-PR
Item #: 10799740
Brand: Sandvik Coromant
Model #: 8019689
Product Specifications
| Insert Style | TNMG |
| Insert Shape Code | T |
| Insert Size Code | 3309 |
| Insert Shape | Triangle |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 4425 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.3750 |
| Corner Radius (Decimal Inch) | 0.0938 |
| Series | TNMG-PR |
| Coating Process | CVD |
| Primary Workpiece Material | Steel |
| Secondary Workpiece Material | K |
| Iso Code | TNMG 33 09 24-PR 4425 |
| Manufacturers Catalog Number | TNMG 33 09 24-PR 4425 |
| Cutting Direction | Neutral |
| Chip Breaker | PR |
| Style | TNMG |
| Coating/Finish | TiCN; TiN; Al2O3 |
