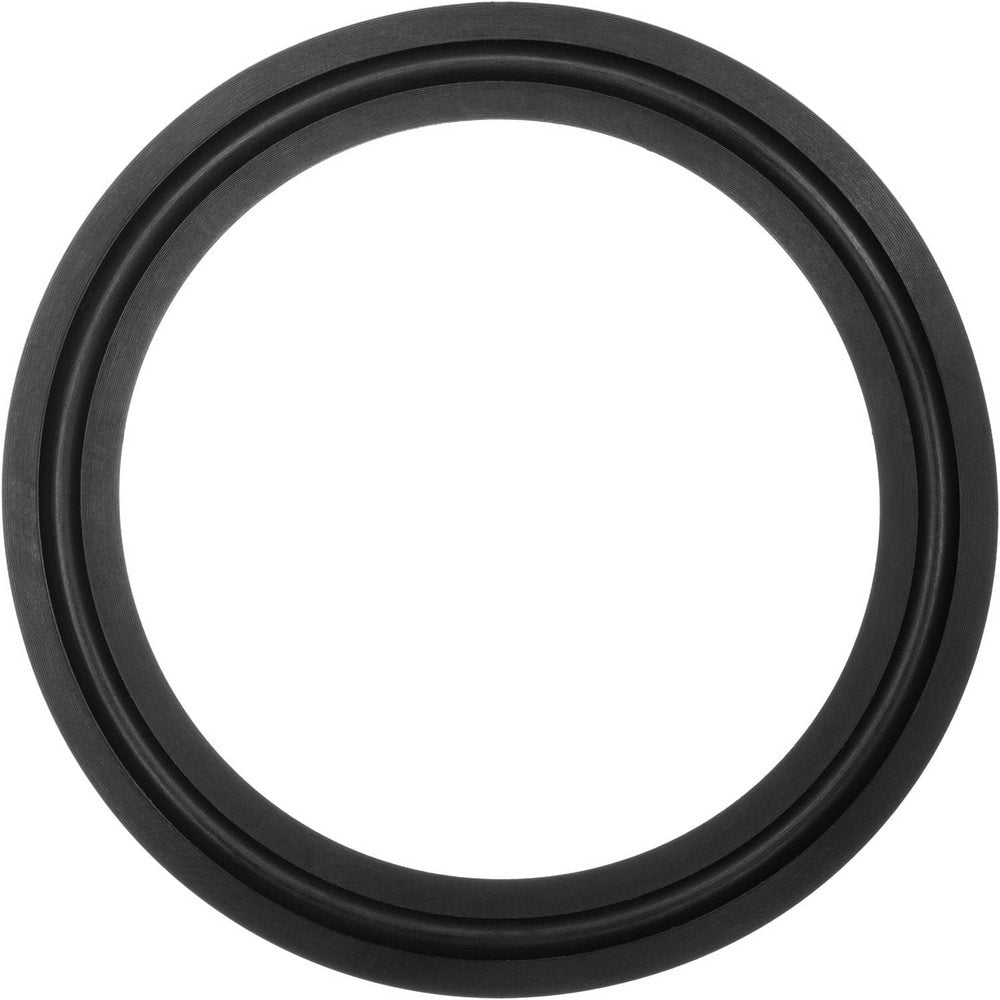

Air Cylinder Accessories; Accessory Type: Lip Seal; For Use With: An O-Ring Secures The U-Cups To The Rod Or Piston For Better Sealing Performance At Lower Pressures.; Material: Polyurethane; Material: Polyurethane; Overall Length (Inch): 1-1/2; Height (D
Item #: 06254759
Brand: USA Industrials
Model #: ZUSAL18701125
Product Specifications
| Accessory Type | Lip Seal |
| For Use With | An O-Ring Secures The U-Cups To The Rod Or Piston For Better Sealing Performance At Lower Pressures. |
| Material | Polyurethane |
| Material | Polyurethane |
| Overall Length (Inch) | 1-1/2 |
| Height (Decimal Inch) | 0.187500 |
| Overall Length (Decimal Inch) | 1.5000 |
| Height (mm) | 4.7600 |
| Inside Diameter (Inch) | 1-1/8 |
| Overall Length (mm) | 38.1000 |
| Inside Diameter (Decimal Inch) | 1.1250 |
| Minimum Temperature (Deg F - 3 Decimals) | -65.000 |
| Outside Diameter (Decimal Inch - 4 Decimals) | 1.5000 |
| Maximum Temperature (F) ( - 0 Decimals) | 200.000 |
| Height (Inch) | 3/16 |
| Outside Diameter (Inch) | 1-1/2 |
| UNSPSC Code | 31411705 |
