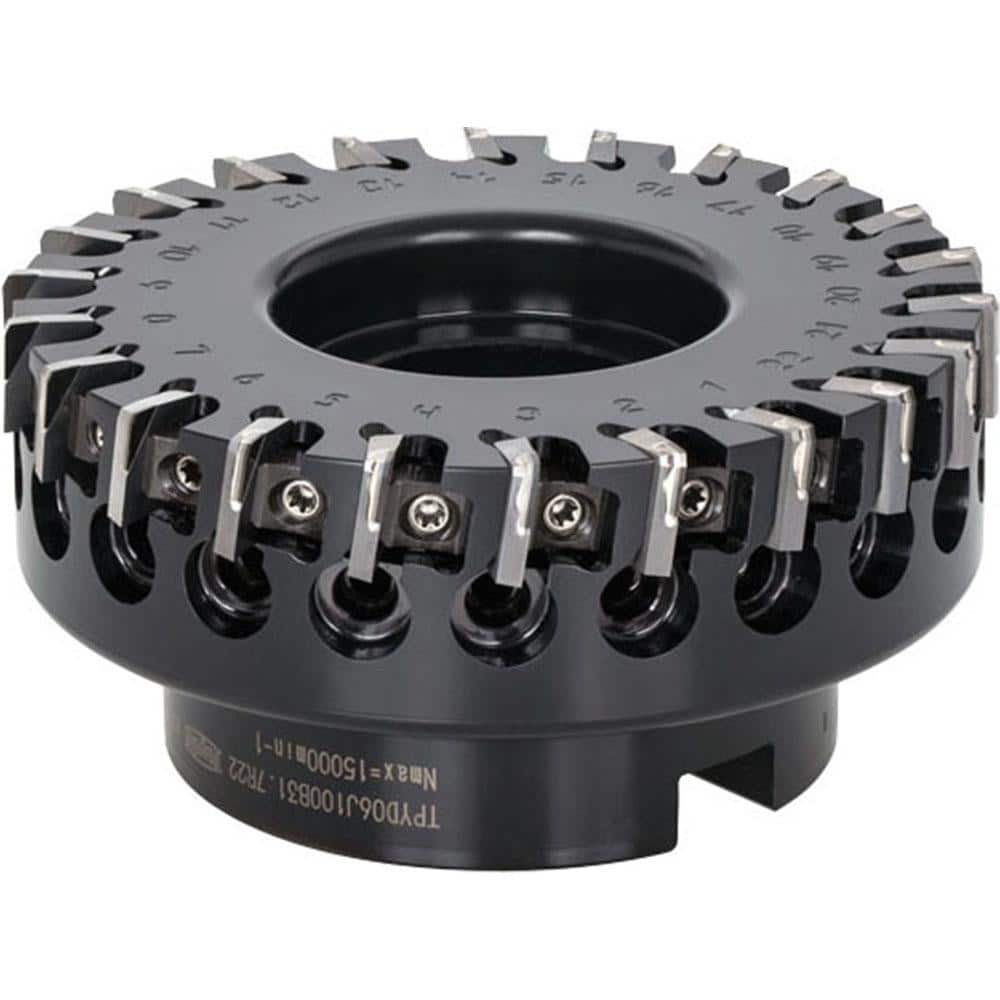

Indexable Square-Shoulder Face Mill: TPYD06J100B31.7R22, 31.7500″ Arbor Hole Dia, Uses 22, YDEN Inserts, Through Coolant, Series TPYD
Item #: 10901049
Brand: Tungaloy
Model #: 6777431
Product Specifications
| Minimum Cutting Diameter (mm) | 100.00 |
| Maximum Cutting Diameter (mm) | 102.00 |
| Maximum Depth of Cut (mm) | 4.50 |
| Arbor Hole Diameter (mm) | 31.75 |
| Arbor Hole Diameter (Inch) | 31-3/4 |
| Arbor Hole Diameter (Decimal Inch) | 31.7500 |
| Compatible Insert Size Code | YDEN |
| Maximum Ramping Angle | 0.00 |
| Cutter Style | TPYD |
| Cutting Direction | Right Hand |
| Insert Holding Method | Wedge |
| Lead Angle | 90 |
| Rake | Positive (Radial); Positive (Axial) |
| Rake Angle | 9.0 |
| Series | TPYD |
| Overall Height (Mm - 5 Decimals) | 50.00 |
| Keyway Width (mm) | 12.70 |
| Keyway Width (Decimal Inch) | 12.7000 |
| Hub Diameter (mm) | 70.00 |
| Hub Diameter (Decimal Inch) | 70.0000 |
| Hub Diameter (Inch) | 70 |
| Maximum RPM | 15000 |
| Tool Application | Facing |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 22 |
