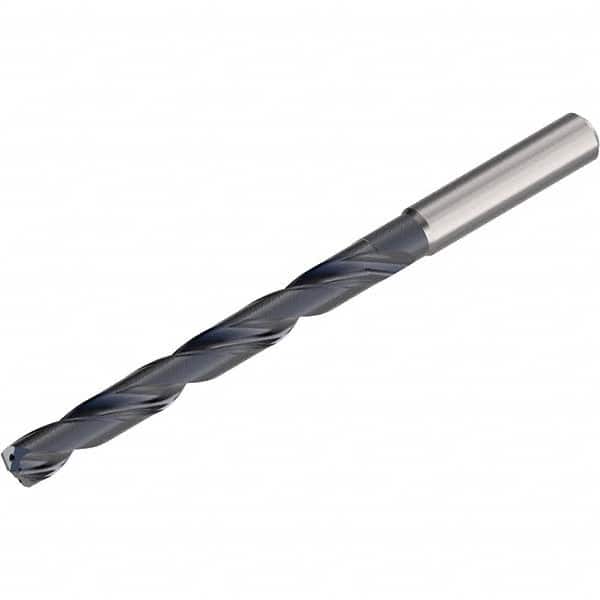

Taper Length Drill Bit: 0.2657″ Dia, 140 ° Coated, RH Cut, Spiral Flute, Cylindrical Shank
Item #: 10921369
Brand: Seco
Model #: 03323687
Product Specifications
| Drill Bit Size (Inch) | 17/64 |
| Tool Material | Solid Carbide |
| Coating/Finish | Coated |
| Flute Length (mm) | 66.00 |
| Shank Type | Cylindrical |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Drill Point Angle (Degrees) | 140 |
| Overall Length (mm) | 106.00 |
| Shank Diameter (mm) | 8.00 |
| Drill Bit Size (Decimal Inch) | 0.2657 |
| Flute Length x Diamter Ratio | 8xD |
| Cutting Direction | Right Hand |
| Flute Length X Diameter Ratio | 8xD |
| Maximum Drilling Depth (mm) | 55.00 |
| Shank Length (mm) | 36.00 |
| Tool Performance | General Purpose |
| Threaded Shank | No |
