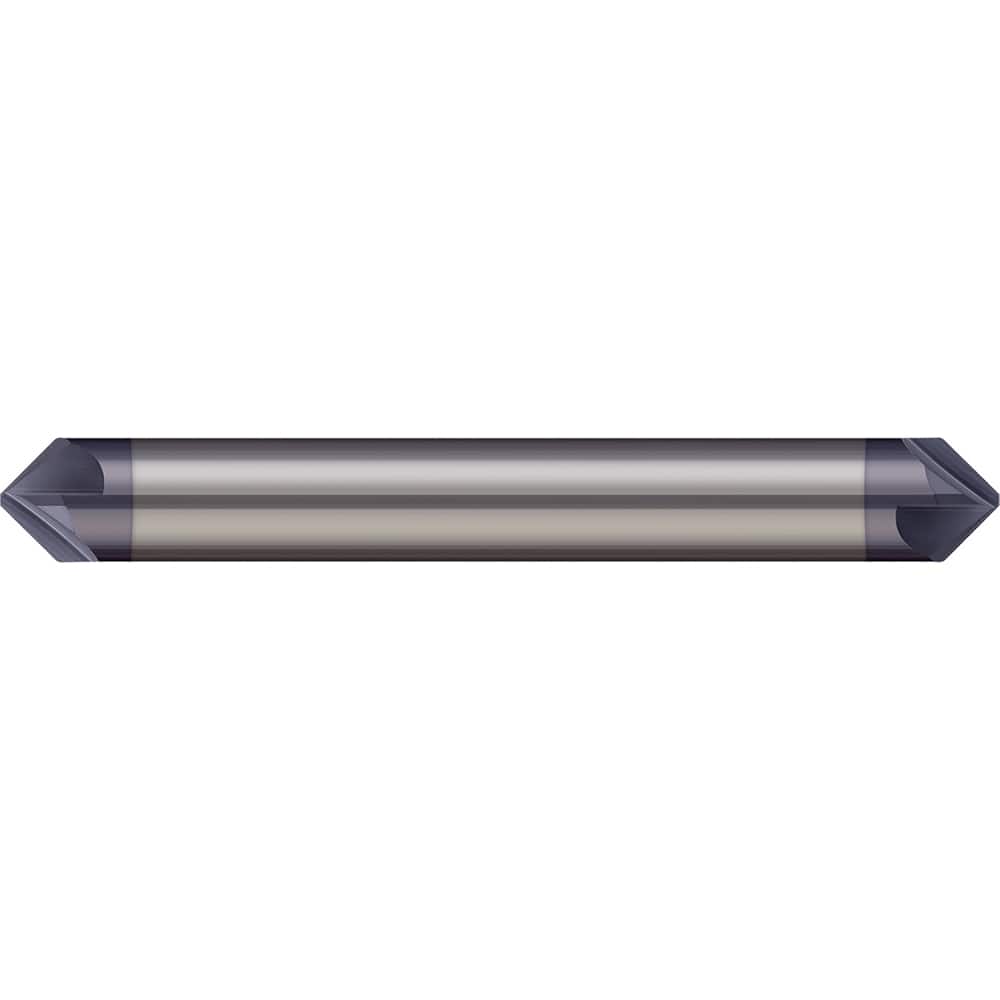

Micro 100 - 3/16" Diam 60°/120° 4-Flute Double End Solid Carbide Chamfer Mill
Item #: 11138757
Brand: Micro 100
Model #: CS-187-060X
Product Specifications
| Cutter Head Diameter (Inch) | 3/16 |
| Included Angle B | 120 |
| Included Angle A | 60 |
| Chamfer Mill Material | Solid Carbide |
| Chamfer Mill Finish/Coating | AlTiN |
| Overall Length (Inch) | 2 |
| Shank Diameter (Inch) | 3/16 |
| Number of Flutes | 4 |
| End Type | Double |
| Length of Cut (Decimal Inch) | 0.1280 |
| Cutting Direction | Right Hand |
| Shank Diameter (Decimal Inch) | 3/16 |
| Overall Length (Decimal Inch) | 2 |
