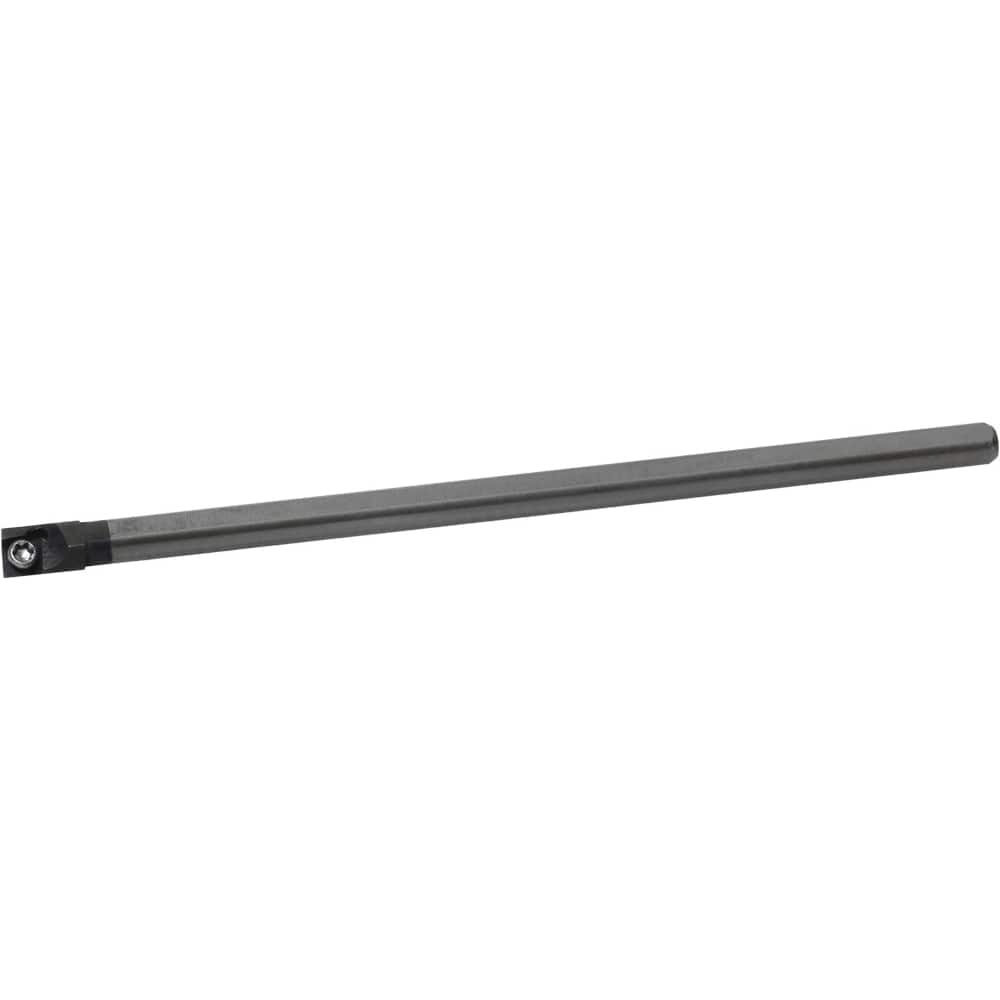

Kyocera - 5mm Min Bore, 7mm Max Depth, Right Hand C...SCLC Indexable Boring Bar
Item #: 11171964
Brand: Kyocera
Model #: 8845996
Product Specifications
| Toolholder Style | C...SCLC |
| Series | DYNB |
| Minimum Bore Diameter (mm) | 5.000 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 7.00 |
| Overall Length (mm) | 90.0000 |
| Shank Diameter (mm) | 4.0000 |
| Insert Compatibility | CCGT1109?; CCET1109?; CCMW1109? |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Boring; Internal Facing |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | 95 |
| Center to Cutting Edge (mm) | 2.50 |
| Insert Thickness (Decimal Inch) | 0.0551 |
| Insert Inscribed Circle (mm) | 3.50 |
| Rake Angle | 2 (Axial);-15 (Radial) |
| Toolholder Material | Steel; Carbide |
