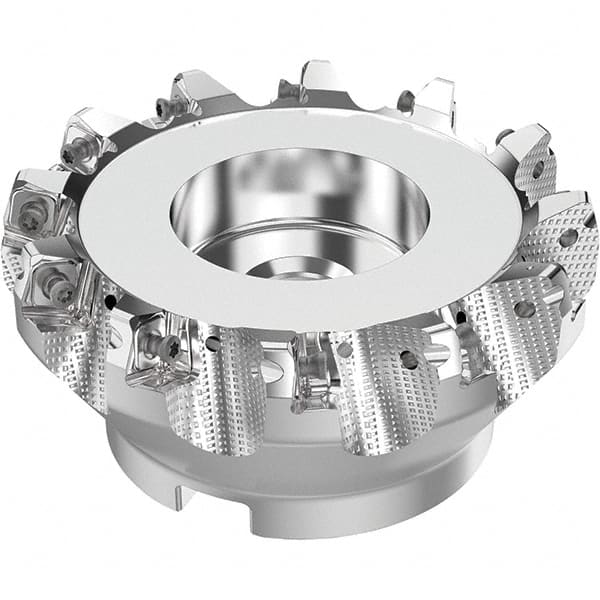

Seco - 125mm Cut Diam, 40mm Arbor Hole, 8mm Max Depth of Cut, 71° Indexable Chamfer & Angle Face Mill - 12 Inserts, SN.. Insert, Right Hand Cut, 12 Flutes, Through Coolant, Series R220.56
Item #: 11174349
Brand: Seco
Model #: 03241906
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 125.00 |
| Cutting Diameter (Decimal Inch) | 4.9213 |
| Arbor Hole Diameter (mm) | 40.00 |
| Lead Angle | 71 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | SN.. |
| Series | R220.56 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 8.00 |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| Cutter Style | R220.56 |
| Number of Flutes | 12 |
| Cutting Rake Angle | -6 |
| Hub Diameter (mm) | 90.00 |
| Keyway Width (mm) | 16.40 |
| Maximum Body Diameter (Decimal Inch) | 5.1180 |
| Maximum RPM | 5400 |
| Cutting Direction | Right Hand |
| Pitch | Close |
| Overall Diameter (Decimal Inch) | 5.1180 |
| Complete Insert Compatibility | SN..14..ZNTR |
| Toolholder Material | Steel |
