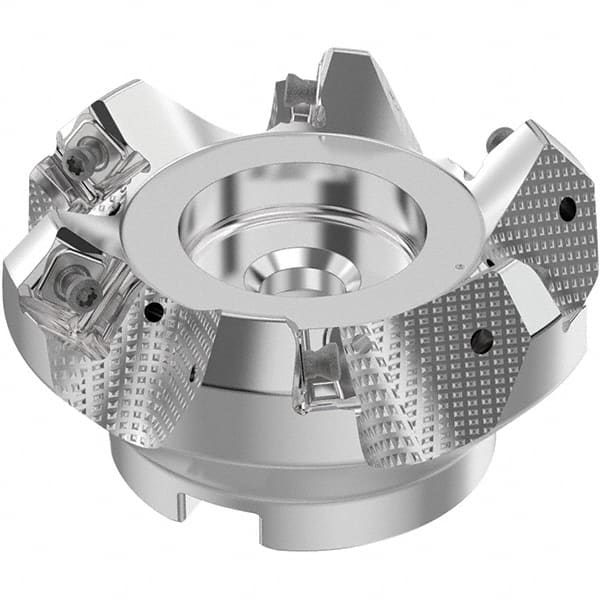

Seco - 80mm Cut Diam, 27mm Arbor Hole, 6mm Max Depth of Cut, 48° Indexable Chamfer & Angle Face Mill - 6 Inserts, SN.. Insert, Right Hand Cut, 6 Flutes, Through Coolant, Series R220.54
Item #: 11174356
Brand: Seco
Model #: 03213624
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Arbor Hole Diameter (mm) | 27.00 |
| Lead Angle | 48 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | SN.. |
| Series | R220.54 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 6.00 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | R220.54 |
| Number of Flutes | 6 |
| Cutting Rake Angle | -6 |
| Hub Diameter (mm) | 62.00 |
| Keyway Width (mm) | 12.40 |
| Maximum Body Diameter (Decimal Inch) | 3.5830 |
| Maximum RPM | 6700 |
| Cutting Direction | Right Hand |
| Pitch | Normal |
| Overall Diameter (Decimal Inch) | 3.5830 |
| Complete Insert Compatibility | SN..14..ANTR |
| Toolholder Material | Steel |
