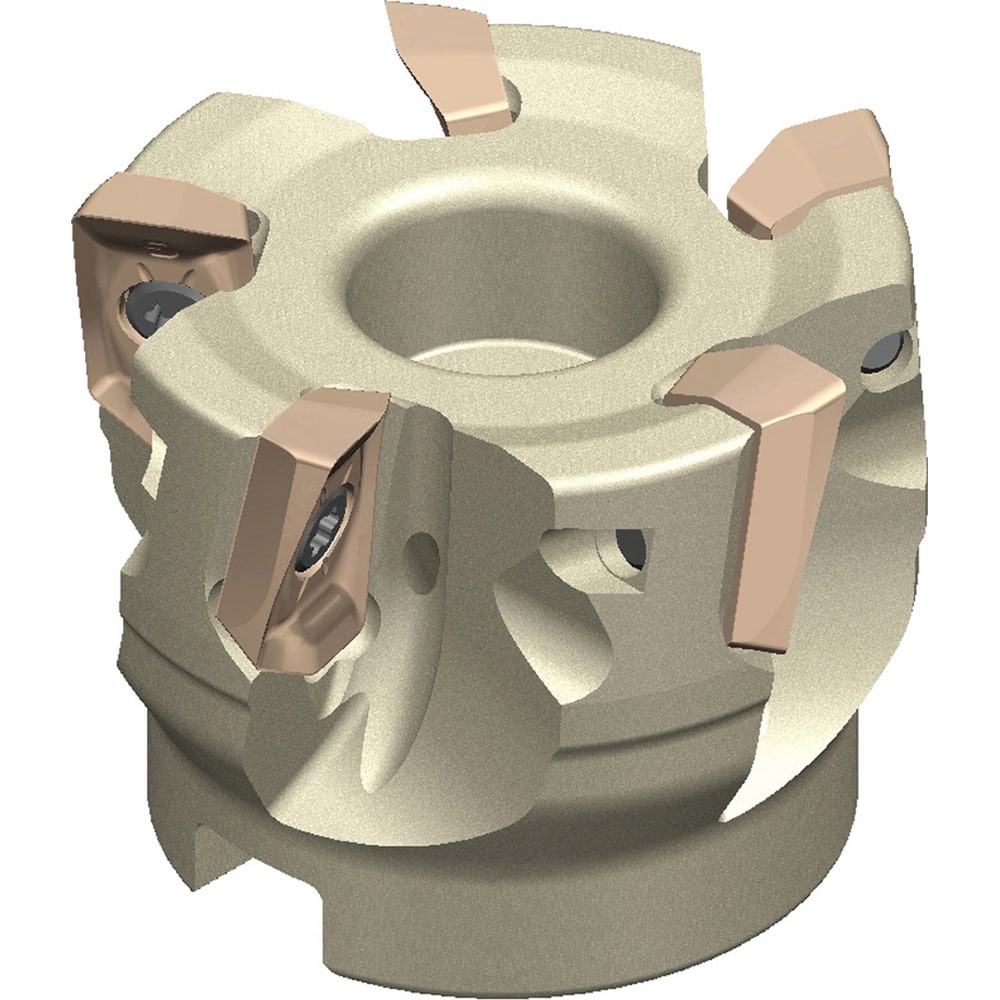

125mm Cut Diam, 38.1mm Arbor Hole Diam, 15mm Max Depth, Indexable Square-Shoulder Face Mill
Item #: 11302809
Brand: Sumitomo
Model #: 2200AWS
Product Specifications
| Maximum Cutting Diameter (mm) | 125.00 |
| Maximum Depth of Cut (mm) | 15.00 |
| Arbor Hole Diameter (mm) | 38.10 |
| Arbor Hole Diameter (Decimal Inch) | 38.1000 |
| Compatible Insert Size Code | AOMT17; AOET17 |
| Cutter Style | WEZ |
| Cutting Direction | Right Hand |
| Lead Angle | 90 |
| Series | WEZ |
| Overall Height (Mm - 5 Decimals) | 63.00 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | WEZ17125R11 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 11 |
