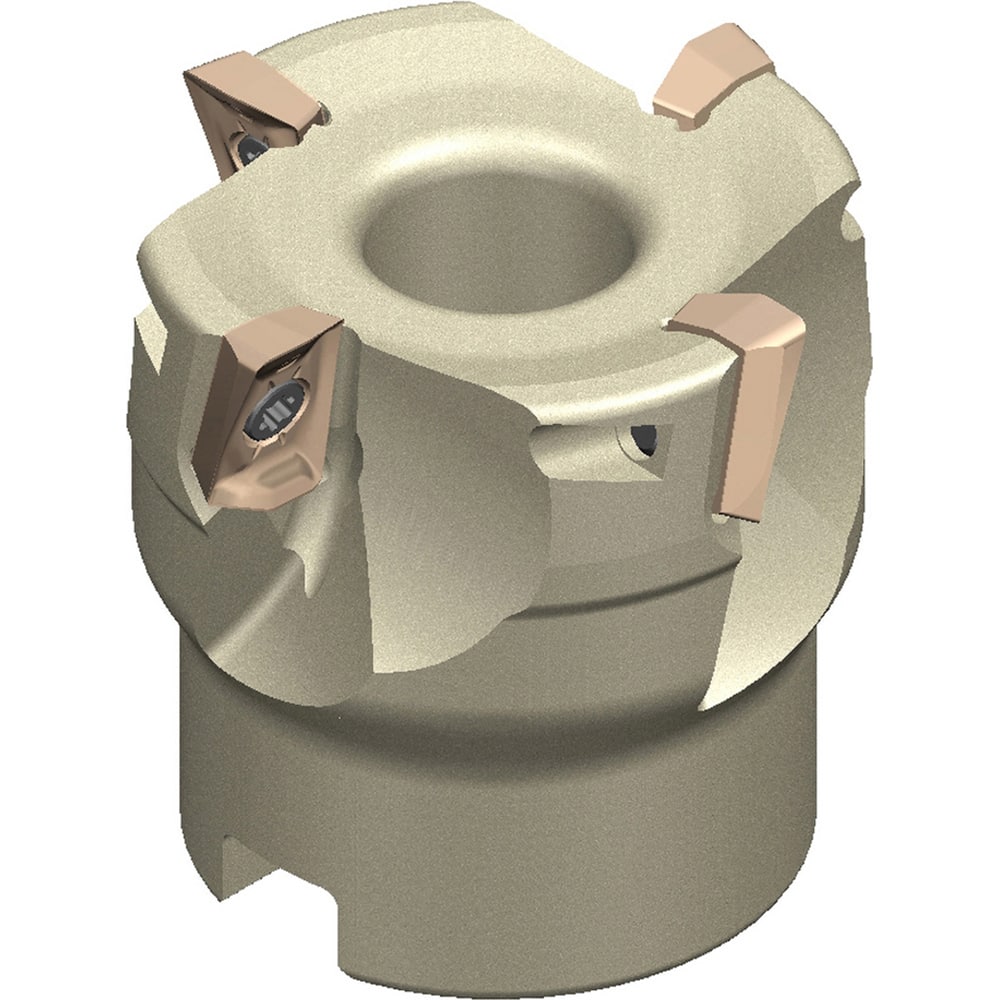

Sumitomo - Indexable Square-Shoulder Face Mills; Cutting Diameter (mm): 80.00 ; Arbor Hole Diameter (mm): 25.40 ; Lead Angle: 90 ; Overall Height (mm): 50.00000 ; Insert Compatibility: AOMT11; AOET11 ; Series: WEZ
Item #: 11302973
Brand: Sumitomo
Model #: 2200AVQ
Product Specifications
Indexable Square-Shoulder Face Mills; Cutting Diameter (mm): 80.00 ; Arbor Hole Diameter (mm): 25.40 ; Lead Angle: 90 ; Overall Height (mm): 50.00000 ; Insert Compatibility: AOMT11; AOET11 ; Series: WEZ
| Cutting Diameter (mm) | 80.00 |
| Arbor Hole Diameter (mm) | 25.40 |
| Lead Angle | 90 |
| Overall Height (mm) | 50.00000 |
| Insert Compatibility | AOMT11; AOET11 |
| Series | WEZ |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 10.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 7 |
| Cutter Style | WEZ |
| Toolholder Material | Steel |
