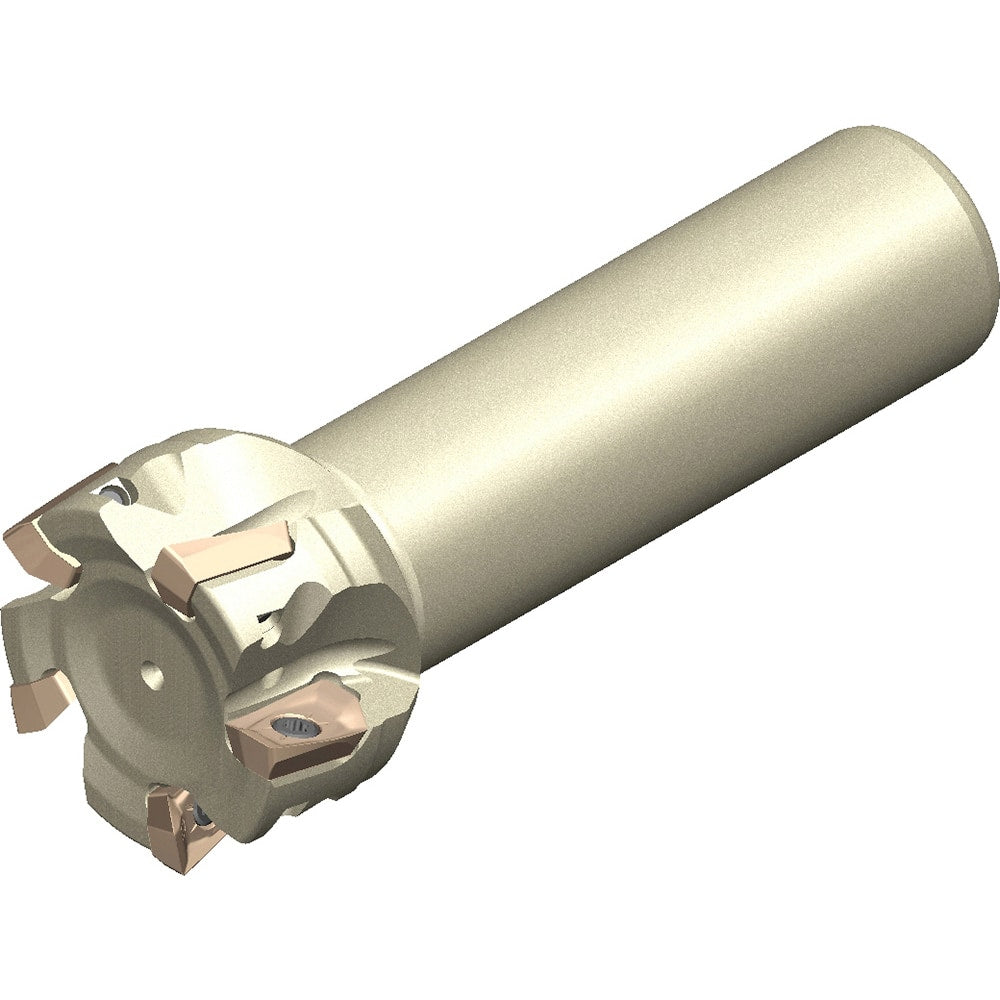

Sumitomo - Indexable Square-Shoulder End Mills; Cutting Diameter (mm): 63.00 ; Shank Type: Straight ; Shank Diameter (mm): 32.0000 ; Overall Length/Projection (mm): 135.00 ; Lead Angle: 90 ; Series: WEZ
Item #: 11303096
Brand: Sumitomo
Model #: 2900AEV
Product Specifications
Indexable Square-Shoulder End Mills; Cutting Diameter (mm): 63.00 ; Shank Type: Straight ; Shank Diameter (mm): 32.0000 ; Overall Length/Projection (mm): 135.00 ; Lead Angle: 90 ; Series: WEZ
| Cutting Diameter (mm) | 63.00 |
| Shank Type | Straight |
| Shank Diameter (mm) | 32.0000 |
| Overall Length/Projection (mm) | 135.00 |
| Lead Angle | 90 |
| Series | WEZ |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 15.00 |
| Number of Cutter Inserts | 4 |
| Cutter Style | WEZ |
| Insert Compatibility | AOMT17; AOET17 |
| Shank Length (mm) | 100.000 |
| Toolholder Material | Steel |
| Hand of Holder | Right Hand |
