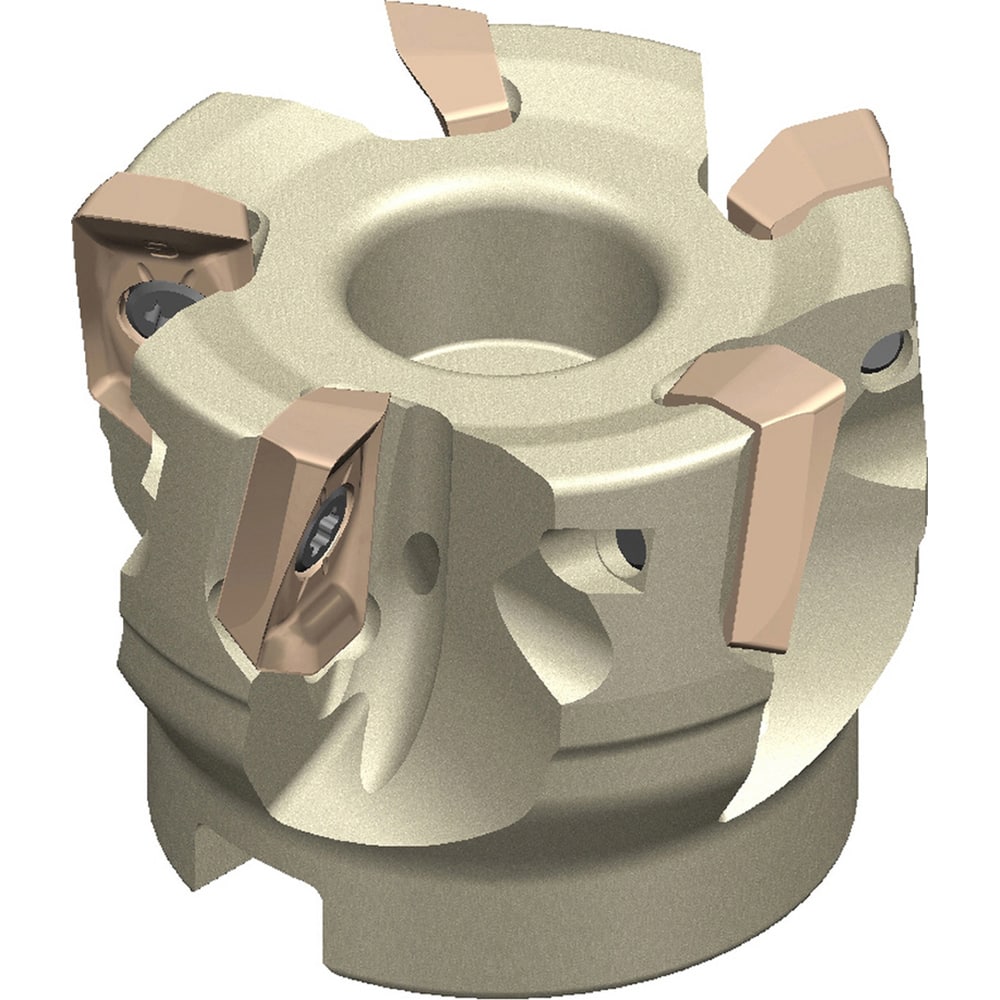

63mm Cut Diam, 22mm Arbor Hole Diam, 15mm Max Depth, Indexable Square-Shoulder Face Mill
Item #: 11303328
Brand: Sumitomo
Model #: 2200AWB
Product Specifications
| Maximum Cutting Diameter (mm) | 63.00 |
| Maximum Depth of Cut (mm) | 15.00 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Inch) | 22 |
| Arbor Hole Diameter (Decimal Inch) | 22.0000 |
| Compatible Insert Size Code | AOMT17; AOET17 |
| Cutter Style | WEZ |
| Cutting Direction | Right Hand |
| Lead Angle | 90 |
| Series | WEZ |
| Overall Height (Mm - 5 Decimals) | 40.00 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | WEZ17063RS04 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 4 |
