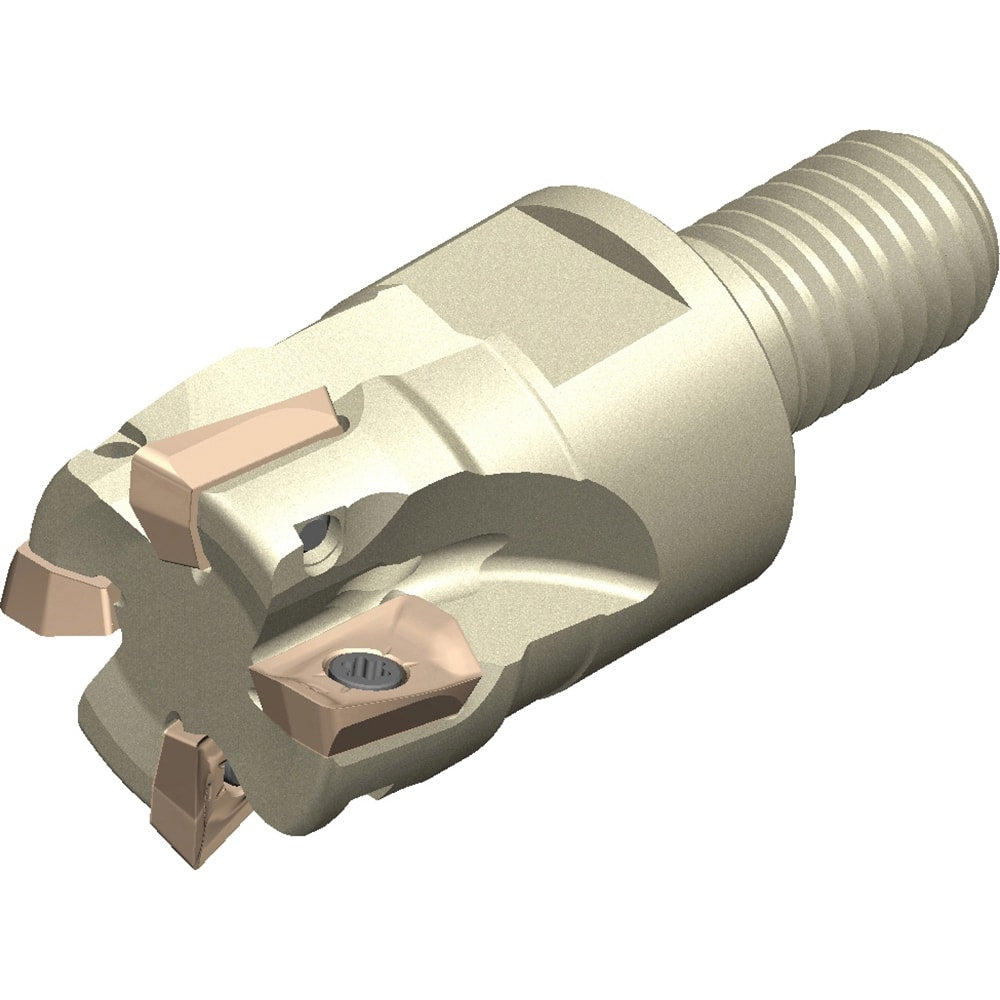

Sumitomo - Indexable Square-Shoulder End Mills; Cutting Diameter (Inch): 1.5 ; Shank Type: Modular Connection ; Modular Connection Size: M16 ; Overall Length/Projection (Decimal Inch): 2.4800 ; Lead Angle: 90 ; Series: WEZ
Item #: 11303963
Brand: Sumitomo
Model #: 2900W6G
Product Specifications
Indexable Square-Shoulder End Mills; Cutting Diameter (Inch): 1.5 ; Shank Type: Modular Connection ; Modular Connection Size: M16 ; Overall Length/Projection (Decimal Inch): 2.4800 ; Lead Angle: 90 ; Series: WEZ
| Cutting Diameter (Inch) | 1.5 |
| Shank Type | Modular Connection |
| Modular Connection Size | M16 |
| Overall Length/Projection (Decimal Inch) | 2.4800 |
| Lead Angle | 90 |
| Series | WEZ |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Inch) | 0.394 |
| Number of Cutter Inserts | 6 |
| Cutter Style | WEZ |
| Insert Compatibility | AOMT11; AOET11 |
| Toolholder Material | Steel |
| Hand of Holder | Right Hand |
