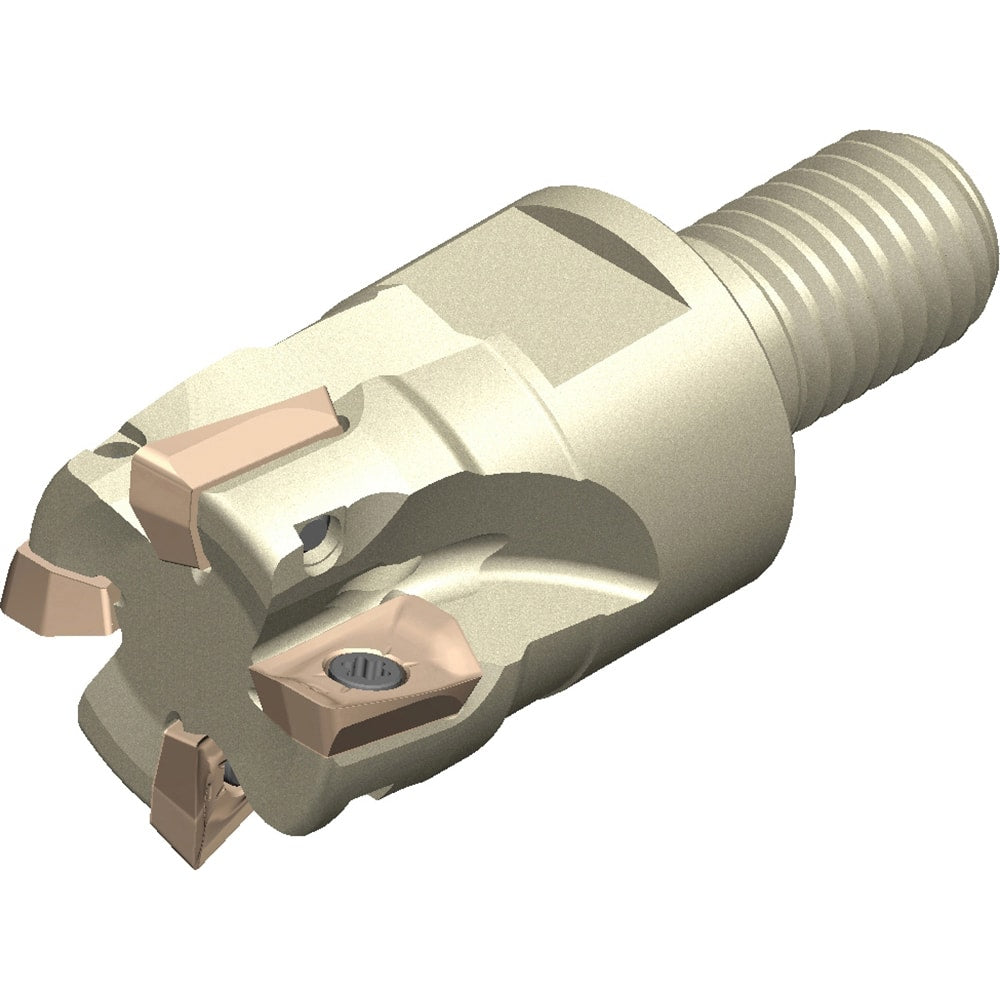

Sumitomo - Indexable Square-Shoulder End Mills; Cutting Diameter (mm): 22.00 ; Shank Type: Modular Connection ; Modular Connection Size: M10 ; Overall Length/Projection (mm): 49.00 ; Lead Angle: 90 ; Series: WEZ
Item #: 11304508
Brand: Sumitomo
Model #: 2900AGA
Product Specifications
Indexable Square-Shoulder End Mills; Cutting Diameter (mm): 22.00 ; Shank Type: Modular Connection ; Modular Connection Size: M10 ; Overall Length/Projection (mm): 49.00 ; Lead Angle: 90 ; Series: WEZ
| Cutting Diameter (mm) | 22.00 |
| Shank Type | Modular Connection |
| Modular Connection Size | M10 |
| Overall Length/Projection (mm) | 49.00 |
| Lead Angle | 90 |
| Series | WEZ |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 10.00 |
| Number of Cutter Inserts | 3 |
| Cutter Style | WEZ |
| Insert Compatibility | AOMT11; AOET11 |
| Toolholder Material | Steel |
| Hand of Holder | Right Hand |
