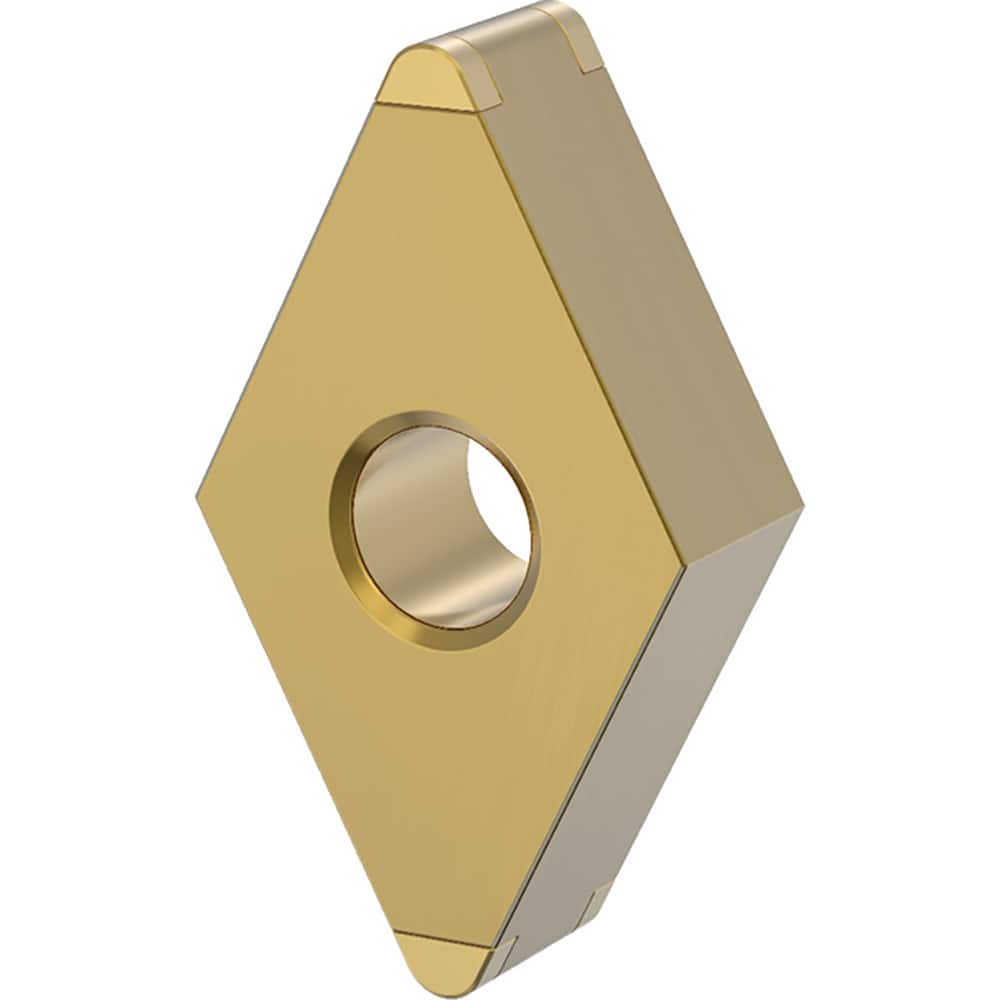

DNGA433S0415DMT KBH10B Carbide Turning Insert Uncoated, 1/2″ Inscribed Circle, 0.0469″ Corner Radius, 0.1883″ Thick, 55° Diamond
Item #: 11330479
Brand: Kennametal
Model #: 6784876
Product Specifications
| Insert Style | DNGA |
| Insert Shape Code | D |
| Insert Size Code | 433 |
| Insert Shape | Diamond 55? |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | KBH10B |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Thickness (Decimal Inch) | 0.1883 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Iso Code | DNGA150412S01015DMT |
| Manufacturers Catalog Number | DNGA433S0415DMT |
| Cutting Direction | Neutral |
| Chip Breaker | A |
| Coating/Finish | Uncoated |
