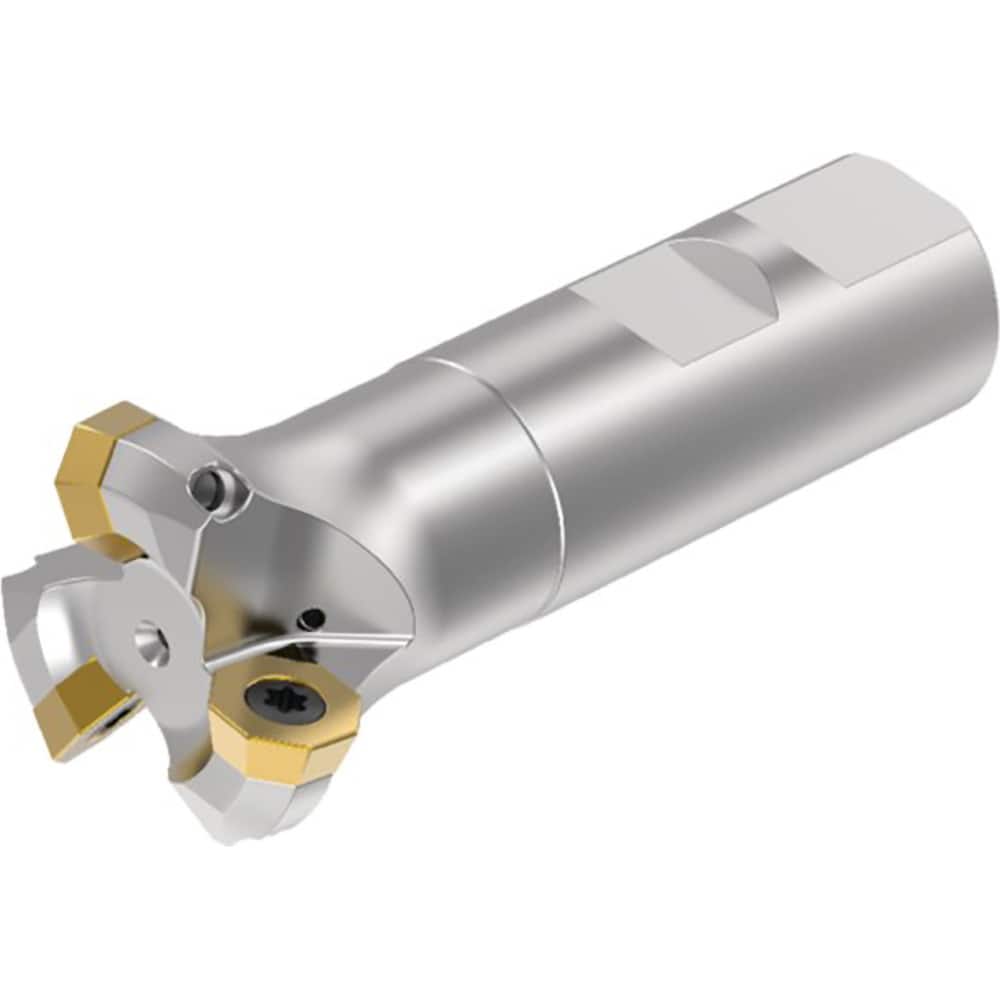

Kennametal - Indexable Square-Shoulder End Mills; Cutting Diameter (mm): 32.00 ; Cutting Diameter (Inch): 1.2600 ; Shank Type: Weldon ; Shank Diameter (mm): 25.0000 ; Overall Length/Projection (mm): 151.00 ; Lead Angle: 42
Item #: 11330727
Brand: Kennametal
Model #: 5671872
Product Specifications
Indexable Square-Shoulder End Mills; Cutting Diameter (mm): 32.00 ; Cutting Diameter (Inch): 1.2600 ; Shank Type: Weldon ; Shank Diameter (mm): 25.0000 ; Overall Length/Projection (mm): 151.00 ; Lead Angle: 42
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Inch) | 1.2600 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 25.0000 |
| Overall Length/Projection (mm) | 151.00 |
| Lead Angle | 42 |
| Series | 7745VOD04 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 8.00 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw Clamping |
| Cutter Style | 7745VOD04 |
| Number of Flutes | 3 |
| Maximum RPM | 33200.000 |
| Hand of Holder | Right Hand |
