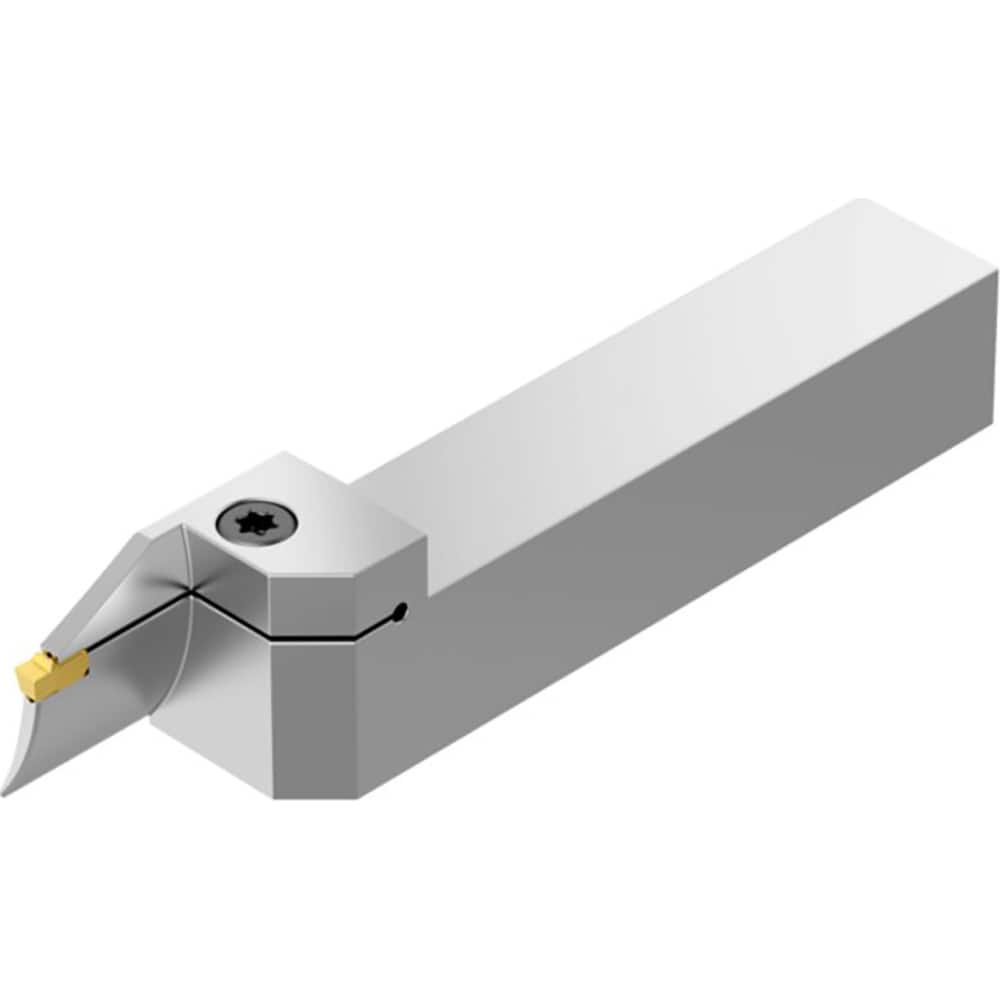

Kennametal - Indexable Grooving/Cut-Off Toolholders; Internal or External: External ; Hand of Holder: Left Hand ; Maximum Depth of Cut (mm): 26.00 ; Minimum Groove Width (mm): 6.00 ; Maximum Groove Width (mm): 6.00 ; Series: Beyond Evolution
Item #: 11330883
Brand: Kennametal
Model #: 6079365
Product Specifications
Indexable Grooving/Cut-Off Toolholders; Internal or External: External ; Hand of Holder: Left Hand ; Maximum Depth of Cut (mm): 26.00 ; Minimum Groove Width (mm): 6.00 ; Maximum Groove Width (mm): 6.00 ; Series: Beyond Evolution
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 26.00 |
| Minimum Groove Width (mm) | 6.00 |
| Maximum Groove Width (mm) | 6.00 |
| Series | Beyond Evolution |
| Toolholder Style | EVSB |
| Insert Compatibility | EG0600M06P04 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Clamp |
| Head Height (mm) | 34.400 |
| Head Length (mm) | 37.00 |
| Shank Length (mm) | 118.000 |
| Insert Seat Size | 6.0 |
