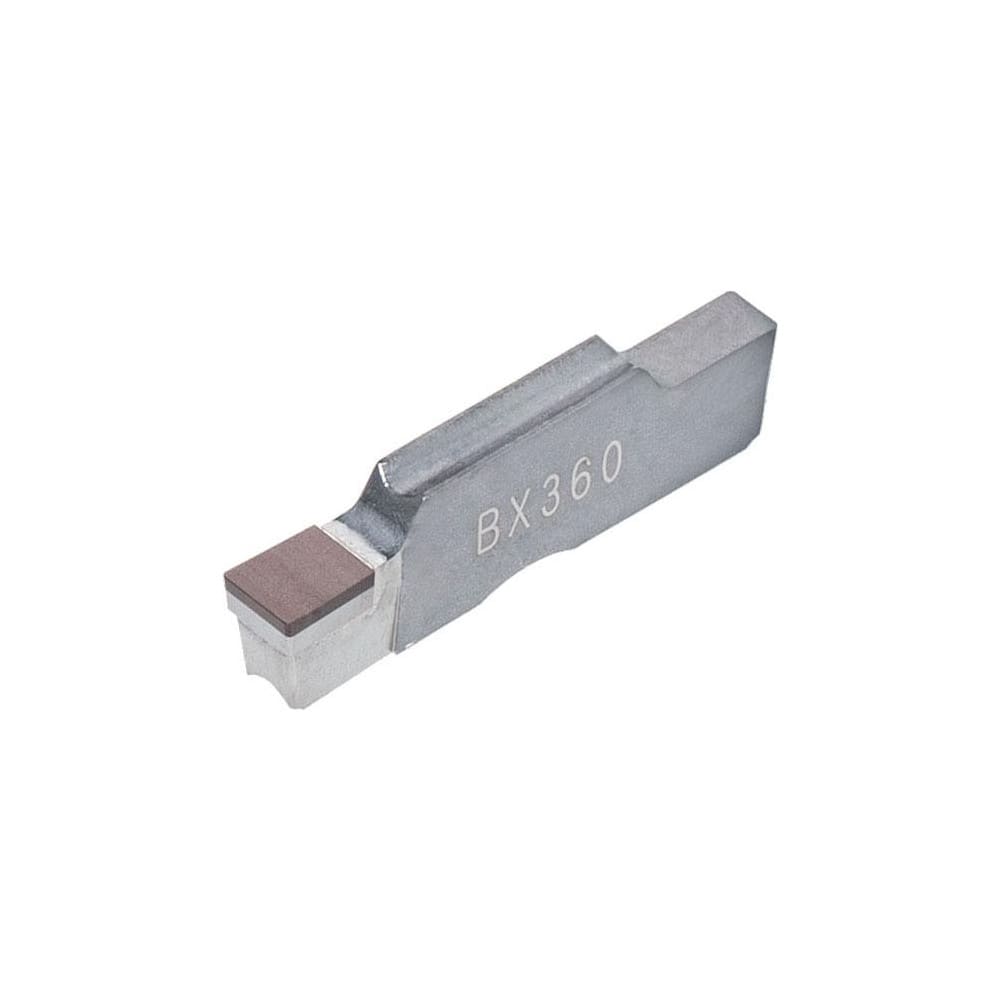

Grooving Insert: SGN BX360, Cubic Boron Nitride Uncoated, Neutral, 0.157″ Cutting Width, Series SGN

Item #: 11357431
Brand: Tungaloy
Model #: 6796014

Product Specifications

Insert Style SGN

Insert Size Code 4

Insert Material Cubic Boron Nitride

Manufacturer Grade BX360

Cutting Width (Decimal Inch) 0.1570

Insert Holding Method Clamp

Insert Hand Neutral

Maximum Depth Of Cut Range (Decimal Inch) 0.3000 to 1.0000

Corner Radius (Decimal Inch) 0.0079

Lead Angle 90

Rake Positive

Multi-use Tool No

Cutting Tool Application Grooving

Series SGN

Primary Workpiece Material Hard Material

Primary Workpiece Material Code H

Coating/Finish Uncoated

Insert Style	SGN
Insert Size Code	4
Insert Material	Cubic Boron Nitride
Manufacturer Grade	BX360
Cutting Width (Decimal Inch)	0.1570
Insert Holding Method	Clamp
Insert Hand	Neutral
Maximum Depth Of Cut Range (Decimal Inch)	0.3000 to 1.0000
Corner Radius (Decimal Inch)	0.0079
Lead Angle	90
Rake	Positive
Multi-use Tool	No
Cutting Tool Application	Grooving
Series	SGN
Primary Workpiece Material	Hard Material
Primary Workpiece Material Code	H
Coating/Finish	Uncoated
