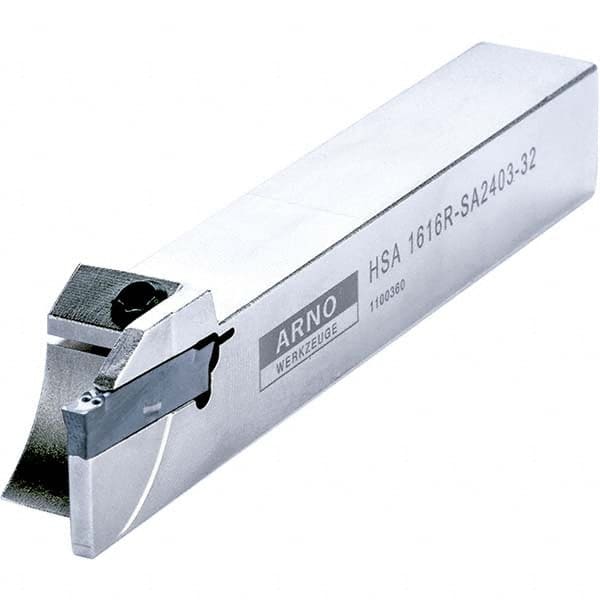

0.236″ Max Depth, 0.059 to 0.472″ Width, External Right Hand Indexable Grooving/Cutoff Toolholder 4.331″ OAL, 8mm Shank Height, Uses SA 16-15\x85 Inserts, HSA Monoblock Toolholder, Series SA Parting / Grooving
Item #: 11428059
Brand: Arno
Model #: 105515
Product Specifications
| Internal or External | External |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Maximum Depth of Cut (mm) | 6.00 |
| Hand of Holder | Right Hand |
| Maximum Groove Width (Decimal Inch) | 0.4720 |
| Minimum Groove Width (Decimal Inch) | 0.0590 |
| Minimum Groove Width (mm) | 1.50 |
| Toolholder Style | HSA Monoblock |
| Insert Holding Method | Screw |
| Insert Compatibility | SA 16-15? |
| Shank Height (mm) | 8.00 |
| Shank Width/Diameter (Decimal Inch) | 0.3150 |
| Series | Grooving; SA Parting |
| Overall Length (Decimal Inch) | 4.3310 |
| Head Length (Decimal Inch) | 0.2360 |
| Manufacturers Catalog Number | HSA 0808R-SA16015-12 |
| Coolant Through | No |
