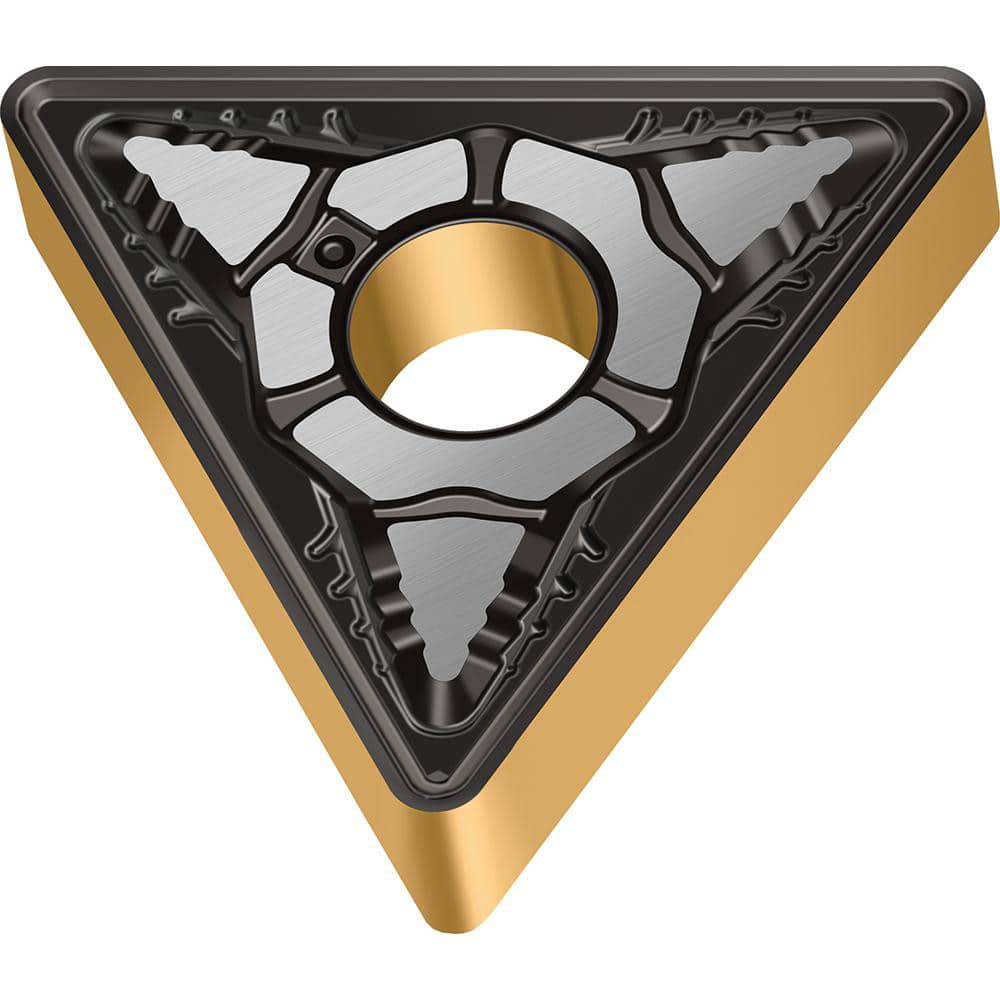

Turning Insert: TNMG544-RP5 WPP30G, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 1.0830″ Long, 5/8″ Inscribed Circle, 0.0630″ Corner Radius, 60.0 ° N/A Triangle, Series TNMG-RP5
Item #: 11490935
Brand: Walter
Model #: 8116068
Product Specifications
| Insert Style | TNMG |
| Insert Shape Code | T |
| Insert Size Code | 544 |
| Insert Shape | Triangle |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WPP30G |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (Decimal Inch) | 1.0830 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Included Angle | 60.0 |
| Relief Angle | 0 |
| Series | TNMG-RP5 |
| Coating Process | CVD |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 1.0830 |
| Number Of Cutting Edges | 6 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron |
| Secondary Workpiece Material Code | K; M |
| Ansi Code | TNMG544RP5WPP30G |
| Iso Code | TNMG270616-RP5 WPP30G |
| Chip Breaker | RP5 |
| Coating/Finish | TiCN; TiN; Al2O3 |
