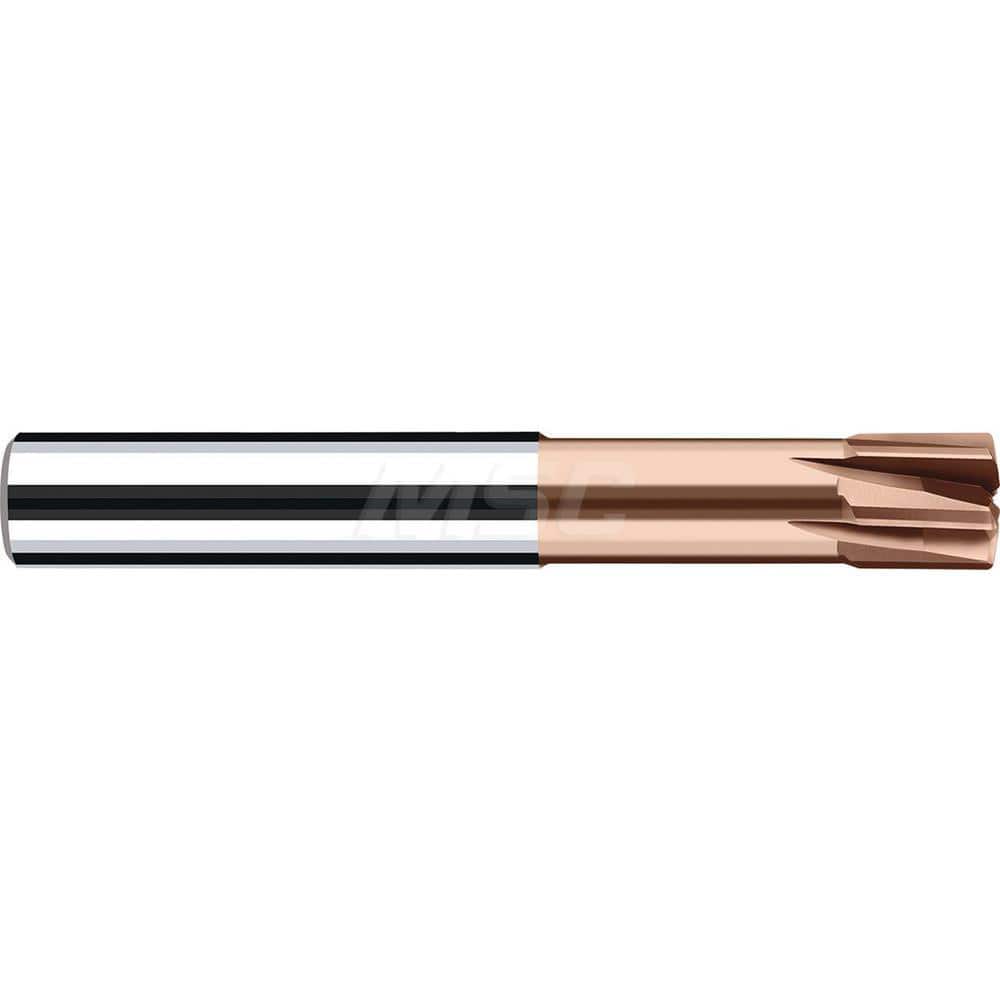

Square End Mill: 0.3937'' Dia, 0.3937'' Shank Dia, 2.8346'' OAL, 6 Flutes, Solid Carbide Single End, Duro-Si Finish, Spiral Flute, RH Cut, RH Flute, Series Xfeed-H
Item #: 11573359
Brand: Fraisa
Model #: H7610450
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3937 |
| Mill Diameter (mm) | 10.00 |
| Number Of Flutes | 6 |
| Length of Cut (mm) | 30.20 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Finish/Coating | Duro-Si |
| Shank Diameter (mm) | 10.00 |
| Chipbreaker | No |
| Variable Helix | No |
| Extended Reach | Yes |
| Overall Length (mm) | 72.00 |
| Material Grade | HM-XA |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Overall Length (Decimal Inch) | 2.8346 |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Neck Length (mm) | 30.20 |
| Neck Diameter (mm) | 9.20 |
| Series | Xfeed-H |
