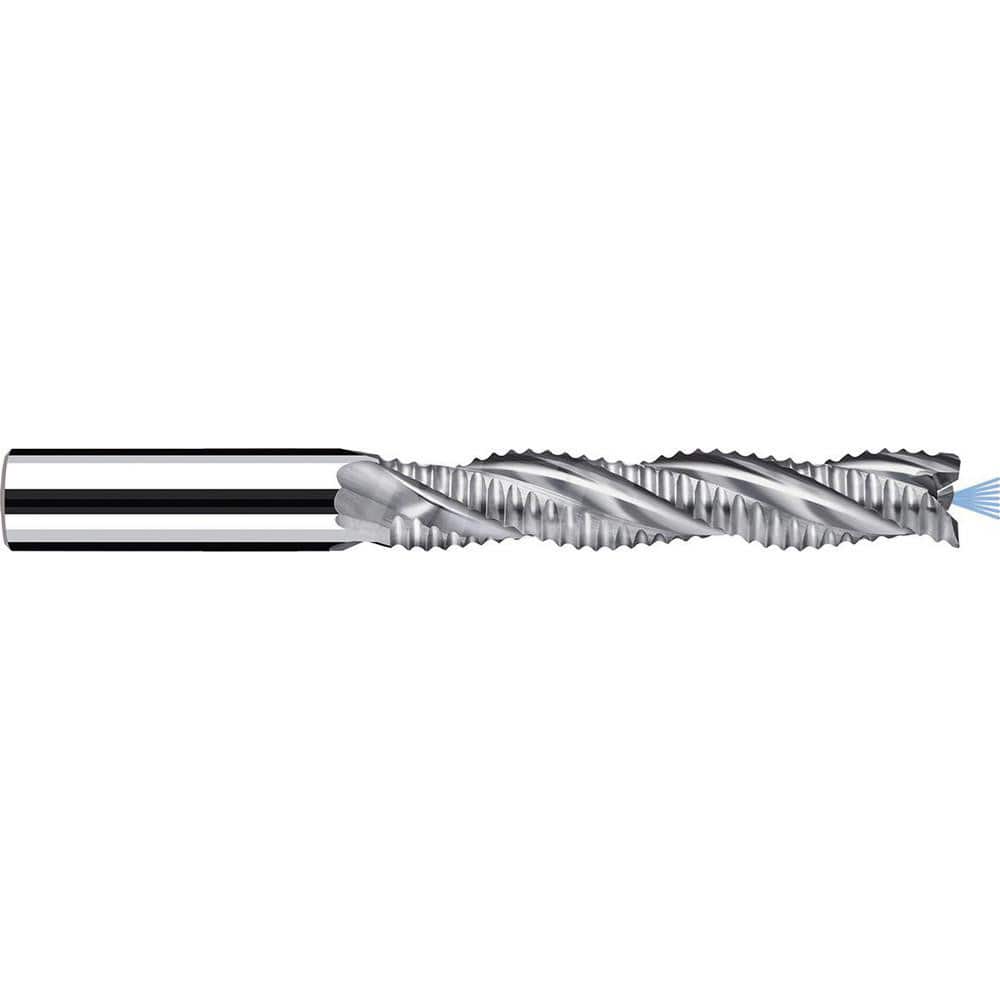

Roughing End Mills; Mill Diameter (mm): 8.00; Mill Diameter (Decimal Inch): 0.3150; Number of Flutes: 3; Pitch: Normal; Length of Cut (mm): 42.0000; Length of Cut (Decimal Inch): 1.6535; Shank Diameter (Inch): 0.3150; Shank Diameter (mm): 8.0000; 0.3150;
Item #: 11574373
Brand: Fraisa
Model #: 15507391
Product Specifications
| Mill Diameter (mm) | 8.00 |
| Mill Diameter (Decimal Inch) | 0.3150 |
| Number of Flutes | 3 |
| Pitch | Normal |
| Length of Cut (mm) | 42.0000 |
| Length of Cut (Decimal Inch) | 1.6535 |
| Shank Diameter (Inch) | 0.3150 |
| Shank Diameter (mm) | 8.0000; 0.3150 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Overall Length (mm) | 84.0000 |
| Centercutting | No |
| Helix Angle | 45.00 |
| Corner Radius (mm) | 0.15 |
| Material Grade | MG10 |
| Single or Double End | Single; Square |
| Flute Direction | Right Hand |
| Length Type | Extra Long |
| Flute Type | Spiral |
| Series/List | AX-FPS |
