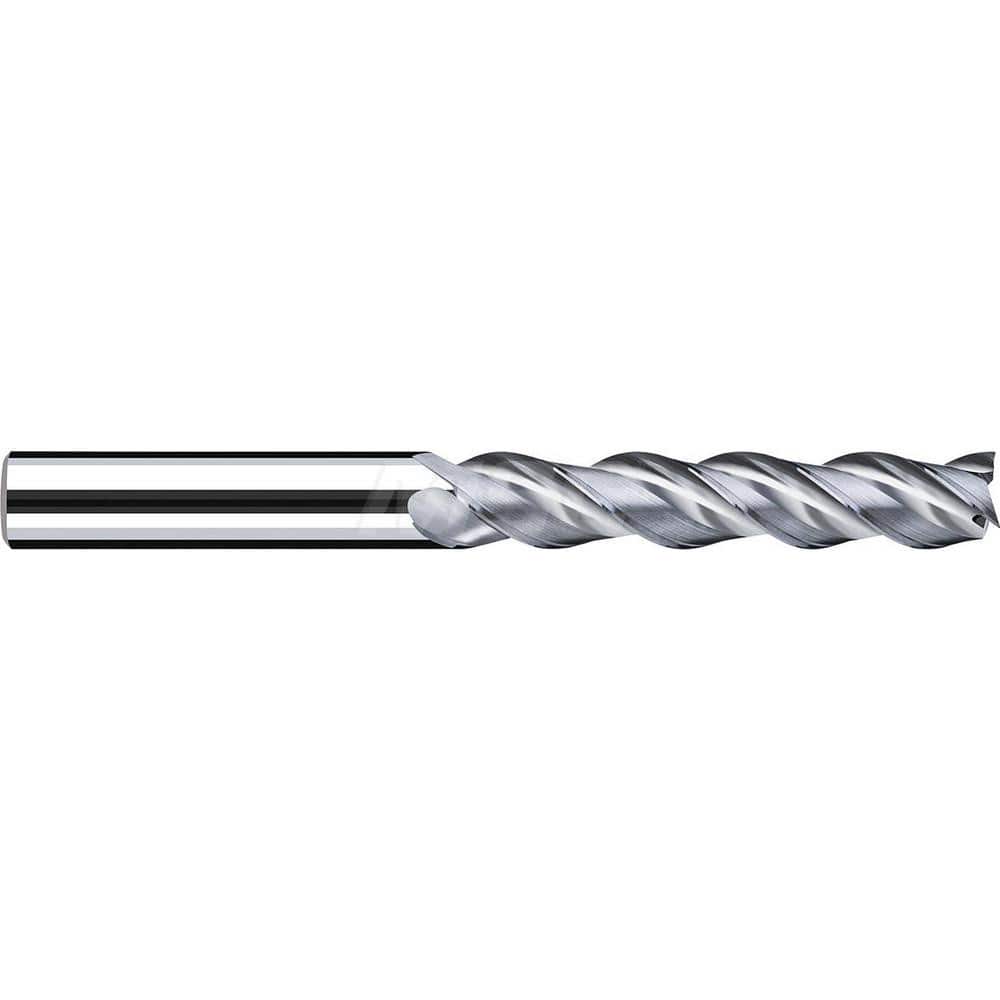

Square End Mill: 0.315'' Dia, 1.6535'' LOC, 0.315'' Shank Dia, 3.3071'' OAL, 3 Flutes, Solid Carbide Single End, Uncoated, Spiral Flute, 40 ™ Variable Helix, Centercutting, RH Cut, RH Flute, Series AX
Item #: 11576816
Brand: Fraisa
Model #: 15510391
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3150 |
| Mill Diameter (mm) | 8.00 |
| Number Of Flutes | 3 |
| Length of Cut (mm) | 42.00 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Finish/Coating | Bright/Uncoated |
| Shank Diameter (mm) | 8.00 |
| Helix Angle | 40 |
| Chipbreaker | No |
| Variable Helix | Yes |
| Extended Reach | No |
| Overall Length (mm) | 84.00 |
| Length Of Cut Range (Decimal Inch) | 1.5000 - 2.0000 |
| Material Grade | HM-MG10 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Overall Length (Decimal Inch) | 3.3071 |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Length Type | Extra Long |
| Series | AX |
