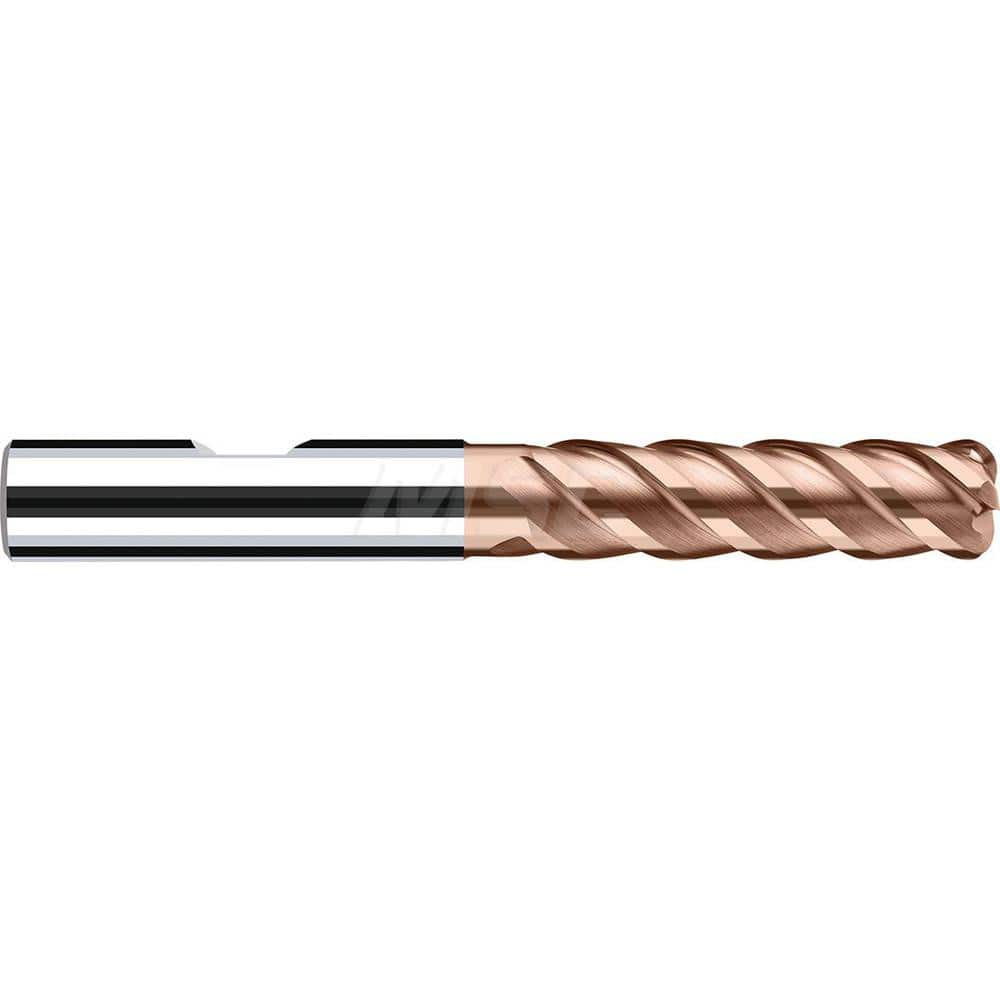

Corner Radius End Mill: 0.315″ Dia, 1.2205″ LOC, 0.0787″ Radius, 4 Flutes, Solid Carbide 2.8346″ OAL, 0.315″ Shank Dia, 45 ° Helix, Duro-Si Coated, Corner Radius End, Centercutting, Series HX-RNVS
Item #: 11576931
Brand: Fraisa
Model #: H8517395
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3150 |
| Mill Diameter (mm) | 8.00 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Corner Radius (mm) | 2.00 |
| Length of Cut (mm) | 31.00 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Type | Medium |
| Flute Type | Spiral |
| Helix Angle | 45 |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | Yes |
| Shank Diameter (Inch) | 0.3150 |
| Shank Diameter (mm) | 8.0000 |
| Overall Length (Inch) | 2.8346 |
| Overall Length (mm) | 72.0000 |
| Overall Length (Decimal Inch) | 2.8346 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | XA |
| Single Or Double End | Single |
| Coating/Finish | Duro-Si |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2205 |
