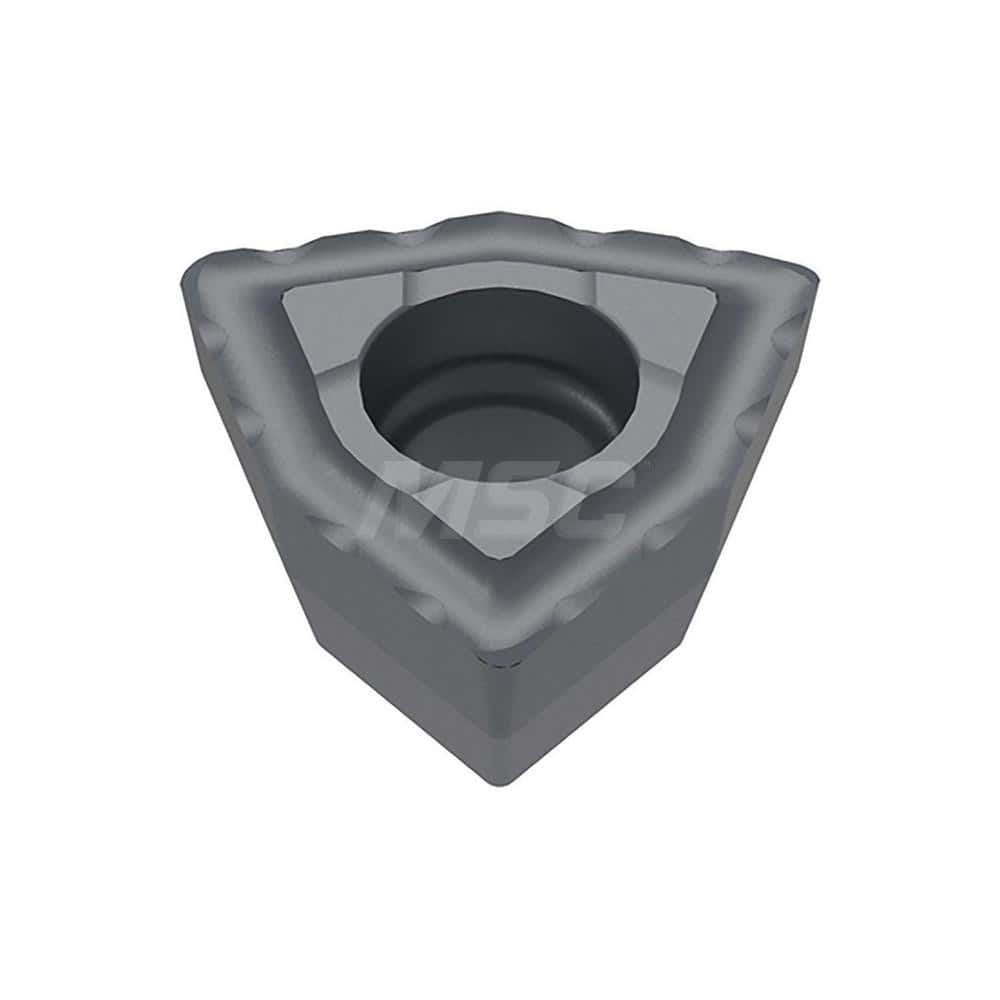

Indexable Drill Insert: 13 BK79, Carbide TiAlN Finish, Trigon
Item #: 11644846
Brand: Komet
Model #: 1082116013
Product Specifications
| Insert Material | Solid Carbide |
| Manufacturer Grade | BK79 |
| Inscribed Circle (Decimal Inch) | 0.5906 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Chipbreaker | 13 |
| Coating Process | PVD |
| Shape | Trigon |
| Manufacturers Catalog Number | WOEX 100504-13 BK79 |
| Width (Decimal Inch - 4 Decimals) | 0.7795 |
| Length (Decimal Inch - 4 Decimals) | 0.7795 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2087 |
| Coating/Finish | TiAlN |
